A5931 - Three-Phase Sensorless Fan Driver

Product Overview

Allegro

📥 Download Datasheet

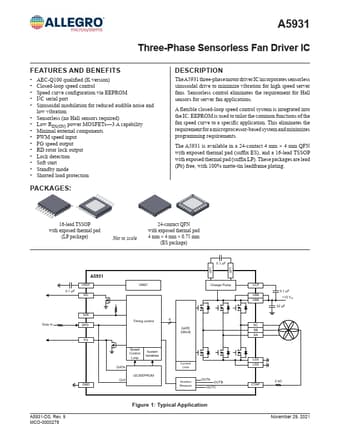

A5931 Three-Phase Sensorless Fan Driver by Allegro - Datasheet Preview — Datasheet preview – A5931

Datasheet Details

Part number	A5931
Manufacturer	Allegro
File Size	1.51 MB
Description	Three-Phase Sensorless Fan Driver
Datasheet	A5931 Datasheet
Additional preview pages of the A5931 datasheet.

Product details

Description

TheA5931 three-phase motor driver IC incorporates sensorless sinusoidal drive to minimize vibration for high speed server fans.

Features

AEC-Q100 qualified (K version).
Closed-loop speed control.
Speed curve configuration via EEPROM.
I2C serial port.
Sinusoidal modulation for reduced audible noise and low vibration.
Sensorless (no Hall sensors required).
Low RDS(ON) power MOSFETs.
3 A capability.
Minimal external components.
PWM speed input.
FG speed output.
RD rotor lock output.
Lock detection.
Soft start.
