A5970D

1.5A switch step down switching regulator

A5970D Features

* Qualified following the AEC-Q100 requirements (see PPAP for more details)

* 1 A DC output current

* Operating input voltage from 4 V to 36 V

* 3.3 V / (± 2%) reference voltage

* Output voltage adjustable from 1.235 V to VIN

* Low dropout operation: 1

A5970D General Description

The A5970D is a step-down monolithic power switching regulator with a minimum switch current limit of 1.35 A so it is able to deliver up to 1 A DC current to the load depending on the application conditions. The output voltage can be set from 1.235 V to VIN. The device uses an internal p-channel DMO.

A5970D Datasheet (1.74 MB)

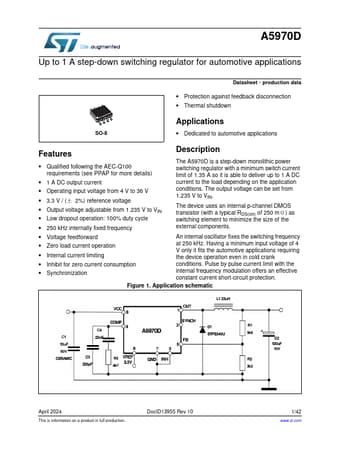

Preview of A5970D PDF

Datasheet Details

Part number:

A5970D

Manufacturer:

STMicroelectronics ↗

File Size:

1.74 MB

Description:

1.5a switch step down switching regulator.
A5970D Up to 1 A step-down switching regulator for automotive applications Datasheet - production data

* Protection against feedback discon.
