A5976

Microstepping DMOS Driver

A5976 Features

* ±2.8 A, 40 V output rating

* Low RDS(on) outputs, 0.22 Ω source, 0.15 Ω sink typical

* Automatic current decay mode detection/selection

* 3 to 5.5 V logic supply voltage range

* Mixed, fast, and slow current decay modes

* Fault output

* Mixed

A5976 General Description

The A5976 is a complete microstepping motor driver with built-in translator. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and sixteenth-step modes, with output drive capability of 40 V and ±2.8 A. The A5976 includes a fixed off-time current regulator that has the abili.

A5976 Datasheet (1.08 MB)

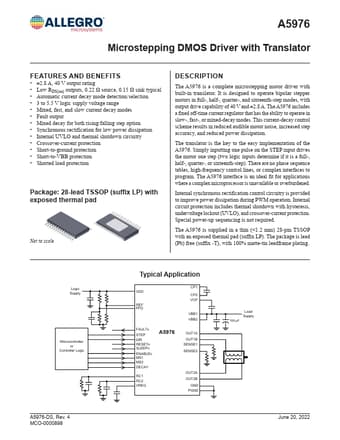

Preview of A5976 PDF

Datasheet Details

Part number:

A5976

Manufacturer:

Allegro

File Size:

1.08 MB

Description:

Microstepping dmos driver.
