A5979 - Microstepping DMOS Driver

Product Overview

Allegro

📥 Download Datasheet

A5979 Microstepping DMOS Driver by Allegro - Datasheet Preview — Datasheet preview – A5979

Datasheet Details

Part number	A5979
Manufacturer	Allegro
File Size	1.05 MB
Description	Microstepping DMOS Driver
Datasheet	A5979 Datasheet

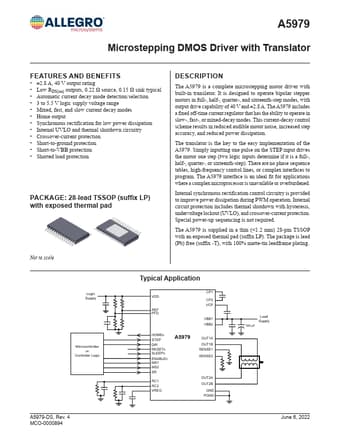

Additional preview pages of the A5979 datasheet.

Product details

Description

The A5979 is a complete microstepping motor driver with built-in translator.

Features

±2.8 A, 40 V output rating.
Low RDS(on) outputs, 0.22 Ω source, 0.15 Ω sink typical.
Automatic current decay mode detection/selection.
3 to 5.5 V logic supply voltage range.
Mixed, fast, and slow current decay modes.
Home output.
Synchronous rectification for low power dissipation.
Internal UVLO and thermal shutdown circuitry.
Crossover-current protection.
Short-to-ground protection.
Short-to-VBB.
