CD6760, CD6759-MA Schottky Barrier Rectifier Chip

CD6760 Description

CD5817 thru CD5819, CD6759 thru CD6761, CD1A20 thru CD1A100 Schottky Barrier Rectifier Chip Series .
The silicon Schottky barrier rectifier chip series offers a large reverse breakdown voltage with low forward voltage.

CD6760 Features

* 1 Amp Schottky Barrier Rectifier Chips
* Silicon Dioxide Passivated

CD6760 Applications

* such as in high frequency rectifiers, reverse polarity protection and more. CD5819 and CD6761 available in JANHC and JANKC per MIL-PRF-19500/586. Die Rev. V1 Electrical Specifications: TA = +25°C Part # CD5817 JHC, JKC 5817 CD5818 Working Peak Reverse Voltage VRWM V 20 20 30 Maximum Forward V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD6760, CD6759-MA. Please refer to the document for exact specifications by model.

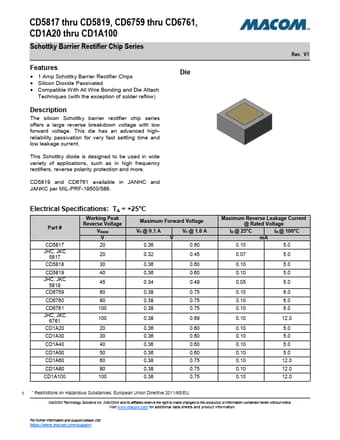

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD6760, CD6759-MA
Manufacturer
MA-COM
File Size
542.14 KB
Datasheet
CD6759-MA-COM.pdf
Description
Schottky Barrier Rectifier Chip
Note
This datasheet PDF includes multiple part numbers: CD6760, CD6759-MA.
Please refer to the document for exact specifications by model.
