CHS-134

Bi-Directional Couplers

CHS-134 Features

* Constant Coupling - within ±0.5 dB max.

* MIL-STD-202 Screening Available Description Bi-Directional couplers offer the ability to couple the power in two directions while maintaining directivity. FP-2 (CH-134) SF-1 (CHS-134) Rev. V3 Pin Configuration Pin No. 1 2 3 4 Function C GND GN

CHS-134 General Description

Bi-Directional couplers offer the ability to couple the power in two directions while maintaining directivity. FP-2 (CH-134) SF-1 (CHS-134) Rev. V3 Pin Configuration Pin No. 1 2 3 4 Function C GND GND B Pin No. 5 6 7 8 Function A GND GND D Pin Configuration Pin No. 1 2 Function C B Pin No.

CHS-134 Datasheet (604.54 KB)

Preview of CHS-134 PDF

Datasheet Details

Part number:

CHS-134

Manufacturer:

MA-COM

File Size:

604.54 KB

Description:

Bi-directional couplers.

📁 Related Datasheet

CHS-137 - Bi-Directional Couplers (MACOM)
CH_CHS-137 19.5 dB Bi-Directional Couplers 0.5-400 MHz Features  Low Cost  Convenient Plug-In Mounting  Fully Hermetic Package (CHS-137)  MIL-STD-.

CHS090TB - Heading Sensor (ACEINNA)
▼ Heading Accuracy 0.5° RMS ▼ Operates in dynamic environments with 360 degrees continuous roll ▼ Available in 1.1 inch, 1.0 inch or 0.9 inch diameter.

CHS100TB - Heading Sensor (ACEINNA)
▼ Heading Accuracy 0.5° RMS ▼ Operates in dynamic environments with 360 degrees continuous roll ▼ Available in 1.1 inch, 1.0 inch or 0.9 inch diameter.

CHS1101 - CAPACITIVE HUMIDITY SENSOR (CYBERSEN)
CHS1101 CYBERSEN , CAPACITIVE HUMIDITY SENSOR SPECIFICATIONS : CHS1101 /(CHS1101LF) CHS1101() CHS1101LF() : : : 2020 4 1 1 2020 4.

CHS1101LF - CAPACITIVE HUMIDITY SENSOR (CYBERSEN)
CHS1101 CYBERSEN , CAPACITIVE HUMIDITY SENSOR SPECIFICATIONS : CHS1101 /(CHS1101LF) CHS1101() CHS1101LF() : : : 2020 4 1 1 2020 4.

CHS110TB - Heading Sensor (ACEINNA)
▼ Heading Accuracy 0.5° RMS ▼ Operates in dynamic environments with 360 degrees continuous roll ▼ Available in 1.1 inch, 1.0 inch or 0.9 inch diameter.

CHS1209 - CHS1209 DC/DC converter (Power-One)
CHS - 3 WATT DESCRIPTION FEATURES • • • • 5V Input Input Pi Filter Regulated Output 12V Output The CHS1209 DC/DC converter offers excellent • Industry.

CHS2190A - 50-60GHz Reflective SPDT Switch (United Monolithic Semiconductors)
CHS2190a 50-60GHz Reflective SPDT Switch GaAs Monolithic Microwave IC Description The CHS2190a is a wideband monolithic diode based reflective switch..

TAGS

CHS-134 Bi-Directional Couplers MA-COM

Image Gallery

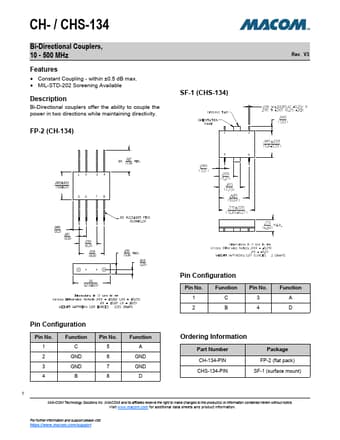

CHS-134 Datasheet Preview Page 2 CHS-134 Datasheet Preview Page 3
