CHS-137

Bi-Directional Couplers

CHS-137 Features

* Low Cost

* Convenient Plug-In Mounting

* Fully Hermetic Package (CHS-137)

* MIL-STD-202 Screening Available Description Bi-Directional Couplers offer the ability to couple the power in two directions while maintaining directivity. SF-1 (CHS-137) RH-1 (CH-137) Rev. V4 Pin Configu

CHS-137 General Description

Bi-Directional Couplers offer the ability to couple the power in two directions while maintaining directivity. SF-1 (CHS-137) RH-1 (CH-137) Rev. V4 Pin Configuration (CHS-137) Pin No. 1 2 Function C B Pin No. 3 4 Function A D Pin Configuration (CH-137) Pin No. 1 2 3 4 Function GND Pin No..

CHS-137 Datasheet (431.43 KB)

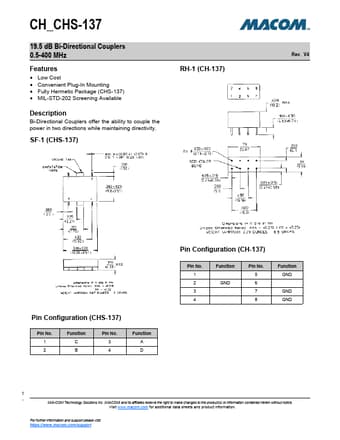

Preview of CHS-137 PDF

Datasheet Details

Part number:

CHS-137

Manufacturer:

MACOM

File Size:

431.43 KB

Description:

Bi-directional couplers.
