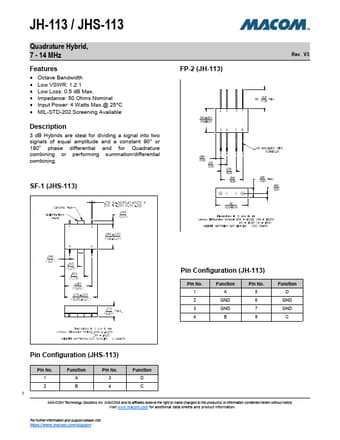

JH-113 Datasheet, Hybrid, MA-COM

JH-113 Features

• Hybrid
• Octave Bandwidth
• Low VSWR: 1.2:1
• Low Loss: 0.5 dB Max.
• Impedance: 50 Ohms Nominal
• Input Power: 4 Watts Max.@ 25°C
• MIL-STD-202

PDF File Details

Part number:

JH-113

Manufacturer:

MA-COM

File Size:

440.60kb

Download:

📄 Datasheet

Description:

Quadrature hybrid. 3 dB Hybrids are ideal for dividing a signal into two signals of equal amplitude and a constant 90o or 180o phase differential and fo
