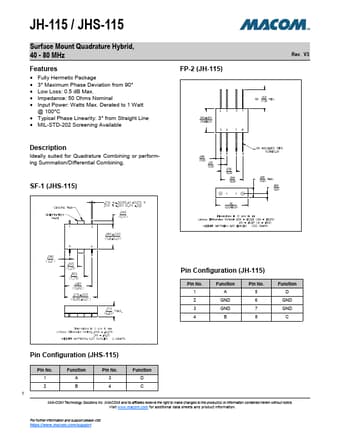

JH-115 Datasheet, Hybrid, MA-COM

JH-115 Features

• Hybrid
• Fully Hermetic Package
• 3° Maximum Phase Deviation from 90°
• Low Loss: 0.5 dB Max.
• Impedance: 50 Ohms Nominal
• Input Power: Watts Max. Der

PDF File Details

Part number:

JH-115

Manufacturer:

MA-COM

File Size:

517.43kb

Download:

📄 Datasheet

Description:

Surface mount quadrature hybrid. Ideally suited for Quadrature Combining or performing Summation/Differential Combining. SF-1 (JHS-115) FP-2 (JH-115) Rev. V3 Pin C
