MAAM-009320 Datasheet, Amplifier, MA-COM

MAAM-009320 Features

  • Amplifier
  • Wide Frequency Range
  • +42 dBm Output IP3
  • 25.5 dB Gain at 2140 MHz
  • 26.5 dB Attenuation Range
  • Lead-Free 4 mm, 24-Lead PQFN Package

PDF File Details

Part number:

MAAM-009320

Manufacturer:

MA-COM

File Size:

297.12kb

Download:

📄 Datasheet

Description:

Variable gain amplifier. The MAAM-009320 is a variable gain amplifier with 26.5 dB of gain control at 2.14 GHz. It has good input IP3 performance over the ful

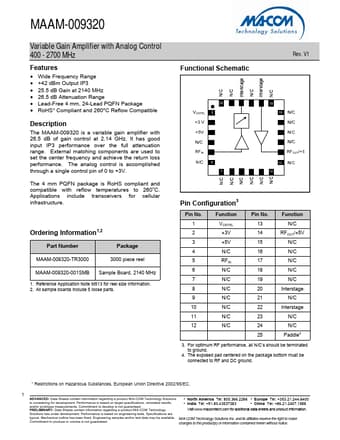

Datasheet Preview: MAAM-009320 📥 Download PDF (297.12kb)
Page 2 of MAAM-009320 Page 3 of MAAM-009320

MAAM-009320 Application

  • Applications include transceivers for cellular infrastructure. Ordering Information1,2 Part Number Package MAAM-009320-TR3000 3000 piece reel
