MASW-007935-TR1000, MASW-007935-MA - GaAs SPDT Terminated Switch

MA-COM

The MASW-007935-TR1000 by MA-COM is a GaAs SPDT Terminated Switch. Below is the official datasheet preview.

📥 Download Datasheet

MASW-007935-TR1000 GaAs SPDT Terminated Switch by MA-COM - Datasheet Preview — Official preview page of the MASW-007935-TR1000 GaAs SPDT Terminated Switch datasheet (MA-COM).

Datasheet Details

Part number	MASW-007935-TR1000, MASW-007935-MA
Manufacturer	MA-COM
File Size	117.55 KB
Description	GaAs SPDT Terminated Switch
Datasheet	MASW-007935-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: MASW-007935-TR1000, MASW-007935-MA. Please refer to the document for exact specifications by model.

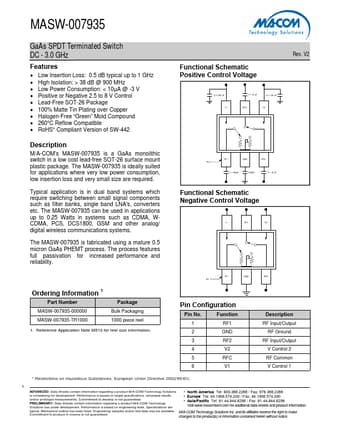

Additional preview pages of the MASW-007935-TR1000 datasheet.

MASW-007935-TR1000 Product details

Description

M/A-COM’s MASW-007935 is a GaAs monolithic switch in a low cost lead-free SOT-26 surface mount plastic package.

Features

Low Insertion Loss: 0.5 dB typical up to 1 GHz.
High Isolation: > 38 dB @ 900 MHz.
Low Power Consumption: < 10µA @ -3 V.
Positive or Negative 2.5 to 8 V Control.
Lead-Free SOT-26 Package.
100% Matte Tin Plating over Copper.
Halogen-Free “Green” Mold Compound.
260°C Reflow Compatible.
RoHS.
Compliant Version of SW-442.
