MASW-007075 GaAs SPDT Absorptive Switch

M/A-COM's MASW-007075-000100 is a GaAs MMIC absorptive SPDT switch with an integral silicon ASIC driver. This device is in a 24-lead plastic package. This switch offers excellent broadband performance and repeatability from DC to 3 GHz, while maintaining low DC power dissipation. The MASW007075-0001.

MASW-007075 Features

* Typical Isolation: 36 dB (2,000 MHz)

* Typical Insertion Loss: 1.8 dB (2,000 MHz)

* Integral ASIC TTL/CMOS Driver

* Low DC Power Consumption

* 50 Ohm Nominal Impedance

* Tape and Reel Packaging Available

* Test Boards Available

* Lead-Free SOW-24 Package

* 100%

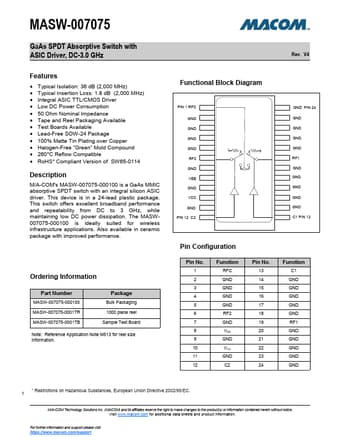

MASW-007075-MA-COM.pdf

MASW-007075 Datasheet Preview — This datasheet PDF includes multiple part numbers: MASW-007075, MASW-007075-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MASW-007075, MASW-007075-MA

Manufacturer:

MA-COM

File Size:

624.70 KB

Description:

Gaas spdt absorptive switch.

Note:

This datasheet PDF includes multiple part numbers: MASW-007075, MASW-007075-MA.
Please refer to the document for exact specifications by model.
