MASW-007107-000SMB, MASW-007107-MA, GaAs Broadband SPDT Switch

MASW-007107 GaAs Broadband SPDT Switch DC - 8.0 GHz .
The MASW-007107 is a broadband GaAs pHEMT MMIC SPDT switch in a lead-free 2 mm 8-lead PDFN package.

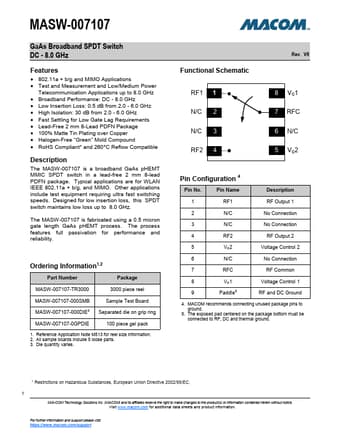

datasheet Preview Page 1 from Datasheet4u.com

MASW-007107-MA-COM.pdf

MASW-007107-000SMB Datasheet Preview — This datasheet PDF includes multiple part numbers: MASW-007107-000SMB, MASW-007107-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MASW-007107-000SMB, MASW-007107-MA

Manufacturer:

MA-COM

File Size:

705.30 KB

Description:

GaAs Broadband SPDT Switch

Note:

This datasheet PDF includes multiple part numbers: MASW-007107-000SMB, MASW-007107-MA.
Please refer to the document for exact specifications by model.

Applications

* Test and Measurement and Low/Medium Power Telecommunication Applications up to 8.0 GHz
* Broadband Performance: DC - 8.0 GHz
* Low Insertion Loss: 0.5 dB from 2.0 - 6.0 GHz
* High Isolation: 30 dB from 2.0 - 6.0 GHz
* Fast Settling for Low Gate Lag Requirements
* Lead-Free
