MASW-007107-0GPDIE, MASW-007107-MA Datasheet - MA-COM

MASW-007107-0GPDIE GaAs Broadband SPDT Switch

The MASW-007107 is a broadband GaAs pHEMT MMIC SPDT switch in a lead-free 2 mm 8-lead PDFN package. Typical applications are for WLAN IEEE 802.11a + b/g, and MIMO. Other applications include test equipment requiring ultra fast switching speeds. Designed for low insertion loss, this SPDT switch maint.

MASW-007107-0GPDIE Features

* 802.11a + b/g and MIMO Applications

* Test and Measurement and Low/Medium Power Telecommunication Applications up to 8.0 GHz

* Broadband Performance: DC - 8.0 GHz

* Low Insertion Loss: 0.5 dB from 2.0 - 6.0 GHz

* High Isolation: 30 dB from 2.0 - 6.0 GHz

* Fast Settling for

MASW-007107-MA-COM.pdf

This datasheet PDF includes multiple part numbers: MASW-007107-0GPDIE, MASW-007107-MA. Please refer to the document for exact specifications by model.

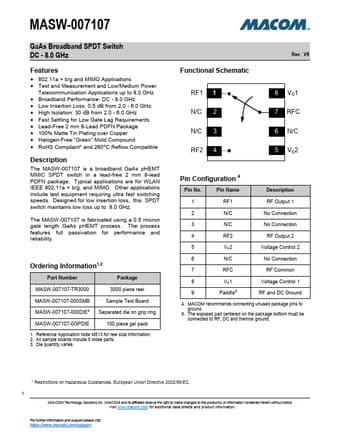

MASW-007107-0GPDIE Datasheet Preview Page 2 MASW-007107-0GPDIE Datasheet Preview Page 3

Datasheet Details

Part number:

MASW-007107-0GPDIE, MASW-007107-MA

Manufacturer:

MA-COM

File Size:

705.30 KB

Description:

Gaas broadband spdt switch.

Note:

This datasheet PDF includes multiple part numbers: MASW-007107-0GPDIE, MASW-007107-MA.
Please refer to the document for exact specifications by model.
