MASW-007107, GaAs Broadband SPDT Switch

www.DataSheet4U.com RoHS Compliant MASW-007107 V3 Functional Schematic Pin 1 GaAs Broadband SPDT Switch DC - 8.0 GHz .
M/A-COM’s MASW-007107 is a broadband GaAs PHEMT MMIC SPDT switch in a lead-free 2 mm 8lead PDFN package.

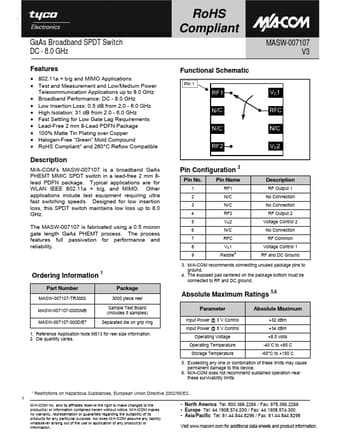

datasheet Preview Page 1 from Datasheet4u.com

MASW-007107_TycoElectronics.pdf

MASW-007107 Datasheet Preview — Preview of MASW-007107 PDF

Datasheet Details

Part number:

MASW-007107

Manufacturer:

Tyco Electronics

File Size:

219.30 KB

Description:

GaAs Broadband SPDT Switch

Applications

* Test and Measurement and Low/Medium Power Telecommunication Applications up to 8.0 GHz
* Broadband Performance: DC - 8.0 GHz
* Low Insertion Loss: 0.5 dB from 2.0 - 6.0 GHz
* High Isolation: 31 dB from 2.0 - 6.0 GHz
* Fast Settling for Low Gate Lag Requireme
