MDC-158 Termination Insensitive Mixer

Transformers convert the LO and RF paths to balanced lines connecting to a low barrier, Schottky diode ring quad. These transformers help provide excellent isolation between ports. Conversion Loss is low. The direct connection of the IF port to the diode quad allows these mixers to be used as phase .

MDC-158 Features

* Low VSWR

* Conversion Loss: 6 dB Typical Midband

* LO-RF Isolation: 35 dB Typical Midband

* Conversion Loss Flatness: 1.5 dB Typical

* Impedance: 50 Ohms Nominal

* Maximum Input Power: 300 mW max. @ 25°C, Derated linearly to 85°C @ 3.2 mW/°C

* IF Port Current: 50 mA Max

MDC-158-MA-COM.pdf

This datasheet PDF includes multiple part numbers: MDC-158, MDC-158-MA. Please refer to the document for exact specifications by model.

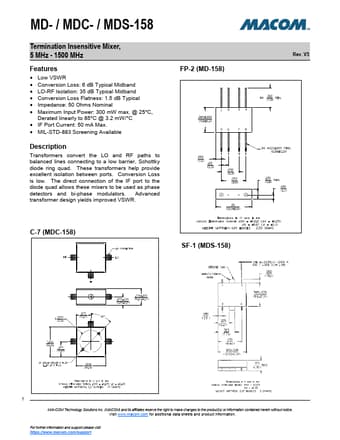

MDC-158 Datasheet Preview Page 2 MDC-158 Datasheet Preview Page 3

Datasheet Details

Part number:

MDC-158, MDC-158-MA

Manufacturer:

MA-COM

File Size:

490.20 KB

Description:

Termination insensitive mixer.

Note:

This datasheet PDF includes multiple part numbers: MDC-158, MDC-158-MA.
Please refer to the document for exact specifications by model.
