MDS-158, MDS-158-MA - Termination Insensitive Mixer

MA-COM

📥 Download Datasheet

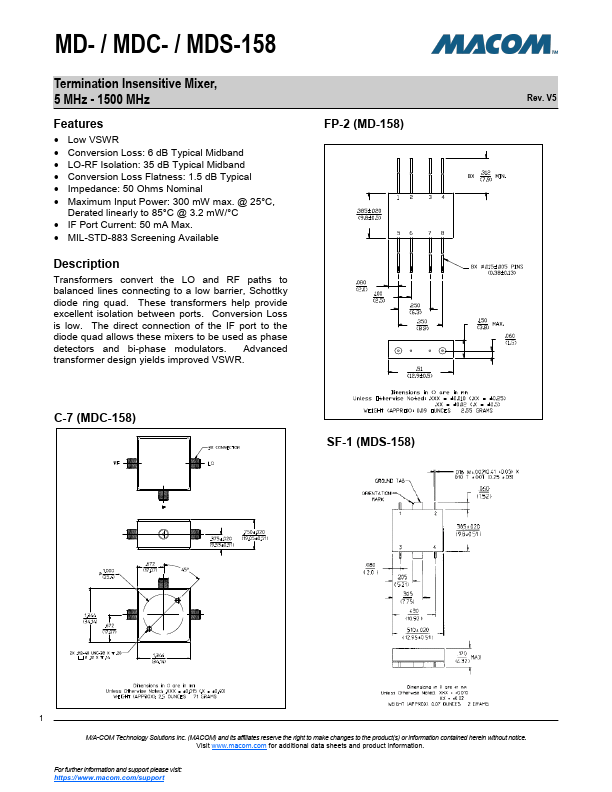

MDS-158 Datasheet Preview — This datasheet PDF includes multiple part numbers: MDS-158, MDS-158-MA. Please refer to the document for exact specifications by model.

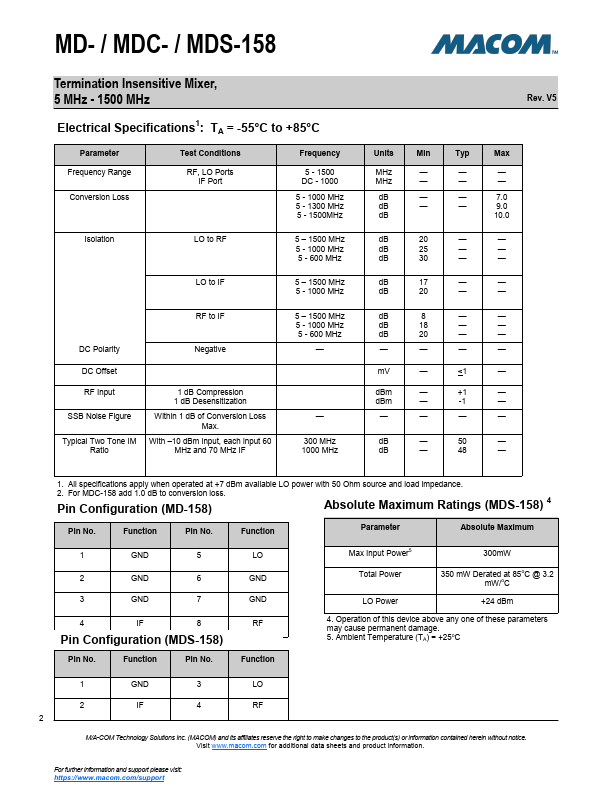

datasheet Preview Page 2

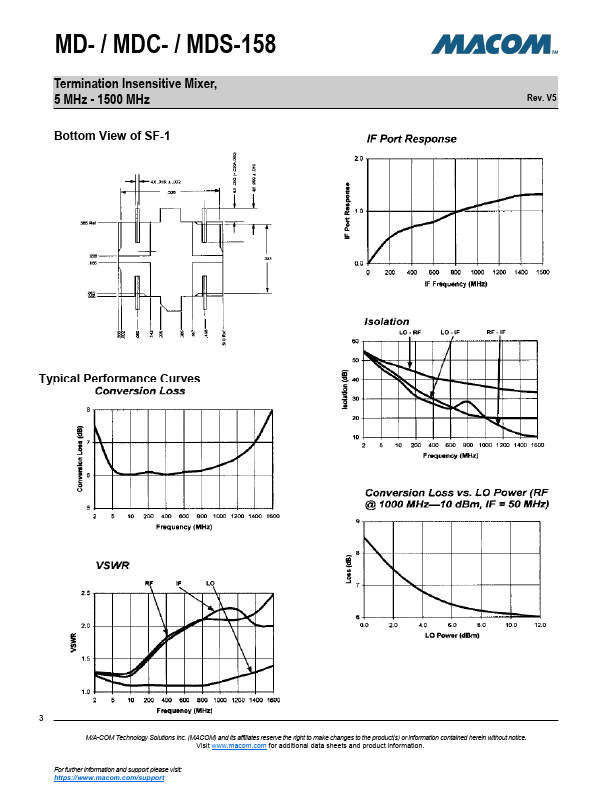

datasheet Preview Page 3

Datasheet Details

Part number	MDS-158, MDS-158-MA
Manufacturer	MA-COM
File Size	490.20 KB
Description	Termination Insensitive Mixer
Datasheet	MDS-158-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: MDS-158, MDS-158-MA. Please refer to the document for exact specifications by model.

MDS-158 Product details

Description

Transformers convert the LO and RF paths to balanced lines connecting to a low barrier, Schottky diode ring quad.

Features

Low VSWR.
Conversion Loss: 6 dB Typical Midband.
LO-RF Isolation: 35 dB Typical Midband.
Conversion Loss Flatness: 1.5 dB Typical.
Impedance: 50 Ohms Nominal.
Maximum Input Power: 300 mW max. @ 25°C, Derated linearly to 85°C @ 3.2 mW/°C.
IF Port Current: 50 mA Max.
MIL-STD-883 Screening Available.
