MDS-223

Surface Mount Double-Balanced Mixer

MDS-223 Features

* Fully Hermetic Package

* Low Cost

* Conversion Loss: 7 dB Typical Midband

* Impedance: 50 Ohms Nominal

* Maximum Input Power: 400 mW Max, Derated to 85°C @ 3.2 mW/°C

* X Port Current: 50 mA Max.

* MIL-STD-883 Screening Available Description Transformers convert the LO a

MDS-223 General Description

Transformers convert the LO and RF paths to balanced lines connecting to a medium barrier, Schottky diode ring quad. These transformers help provide excellent isolation between ports. Conversion loss is low. The direct connection of the IF port to the diode quad allows these mixers to be used as pha.

MDS-223 Datasheet (463.32 KB)

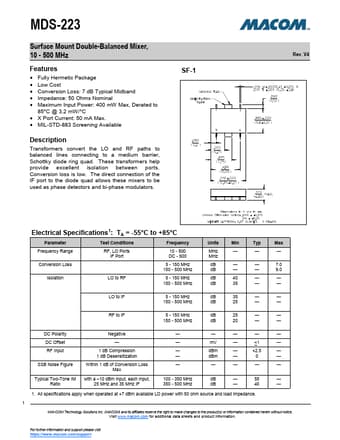

Preview of MDS-223 PDF

Datasheet Details

Part number:

MDS-223

Manufacturer:

MA-COM

File Size:

463.32 KB

Description:

Surface mount double-balanced mixer.
