MLP7121, MLP7100-MA Datasheet - MA-COM

MLP7121, MLP7100-MA, Low Power Limiter Diodes

MLP71xx Series Low Power Limiter Diodes .
The MLP71xx Series limiter diodes are specially processed PIN diodes with thin intrinsic regions designed for use in passive or active limiters from 1.

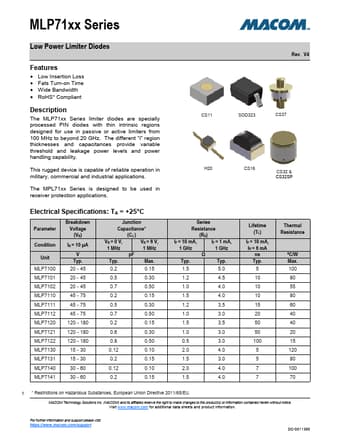

datasheet Preview Page 1 from Datasheet4u.com

MLP7100-MA-COM.pdf

MLP7121 Datasheet Preview — This datasheet PDF includes multiple part numbers: MLP7121, MLP7100-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MLP7121, MLP7100-MA

Manufacturer:

MA-COM

File Size:

662.63 KB

Description:

Low Power Limiter Diodes

Note:

This datasheet PDF includes multiple part numbers: MLP7121, MLP7100-MA.
Please refer to the document for exact specifications by model.

Features

* Low Insertion Loss
* Fats Turn-on Time
* Wide Bandwidth
* RoHS

Applications

* The MPL71xx Series is designed to be used in receiver protection applications. Electrical Specifications: TA = +25°C Parameter Condition Unit MLP7100 Breakdown Voltage (VB) IR = 10 µA V Typ. 20 - 45 Junction Capacitance
* (CJ ) VR = 0 V, VR = 6 V, 1 MHz 1 MHz pF Typ. Max. 0.2 0.15
