MLP7102-0503

Silicon PIN Diode

MLP7102-0503 Features

* Low Insertion Loss

* Fast Turn-on Time

* Wide Bandwidth

* RoHS

* Compliant Applications

* Military, Commercial, and Industrial

* Receiver Protection Description The MLP71xx series limiter diodes are specially processed PIN diodes with thin intrins

MLP7102-0503 General Description

The MLP71xx series limiter diodes are specially processed PIN diodes with thin intrinsic regions designed for use in passive or active limiters from 100 MHz to beyond 20 GHz. The different ā€œIā€ region thicknesses and capacitances provide variable threshold and leakage power levels and power handling .

MLP7102-0503 Datasheet (325.53 KB)

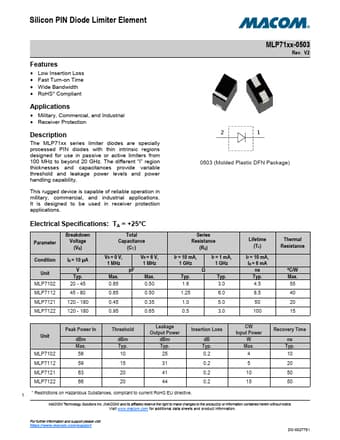

Preview of MLP7102-0503 PDF

Datasheet Details

Part number:

MLP7102-0503

Manufacturer:

MACOM

File Size:

325.53 KB

Description:

Silicon pin diode.
