MTV4060-06, MTV4060-01-MA, Silicon Abrupt Tuning Varactor Diodes

MTV4060-x Series Silicon Abrupt Tuning Varactor Diodes .
The MTV4060 series are available with typical capacitance at reverse voltage of 4 V from 0.

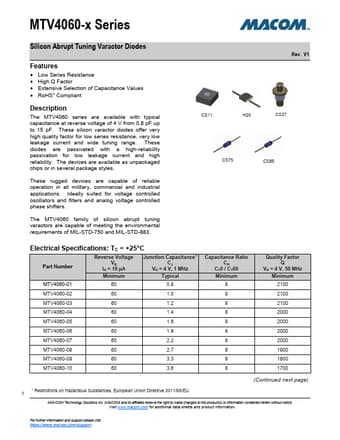

MTV4060-01-MA-COM.pdf

MTV4060-06 Datasheet Preview — This datasheet PDF includes multiple part numbers: MTV4060-06, MTV4060-01-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MTV4060-06, MTV4060-01-MA

Manufacturer:

MA-COM

File Size:

655.00 KB

Description:

Silicon Abrupt Tuning Varactor Diodes

Note:

This datasheet PDF includes multiple part numbers: MTV4060-06, MTV4060-01-MA.
Please refer to the document for exact specifications by model.

Features

* Low Series Resistance
* High Q Factor
* Extensive Selection of Capacitance Values
* RoHS

Applications

* Ideally suited for voltage controlled oscillators and filters and analog voltage controlled phase shifters. The MTV4060 family of silicon abrupt tuning varactors are capable of meeting the environmental requirements of MIL-STD-750 and MIL-STD-883. Rev. V1 CS11 H20 CS
