MY93

Triple-Balanced Mixer

MA-COM

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	MACOM	MY93	MY93	MIXER,MICROWAVE	DigiKey	0	10 units	$999.15	🛒 Buy Now

Download Datasheet (635.34 KB)

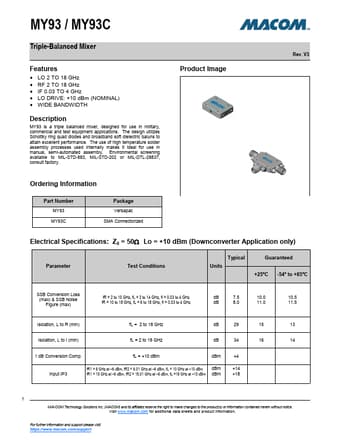

MY93 Datasheet Preview — Preview of MY93 Datasheet

Datasheet Details

Part number:

MY93

Manufacturer:

MA-COM

File Size:

635.34 KB

Description:

Triple-balanced mixer.
MY93 / MY93C Triple-Balanced Mixer Features * LO 2 TO 18 GHz * RF 2 TO 18 GHz * IF 0.03 TO 4 GHz * L.
MY93 is a triple balanced mixer, designed for use in military, commercial and test equipment applica.

✔ MY93 Features

LO 2 TO 18 GHz
RF 2 TO 18 GHz
IF 0.03 TO 4 GHz
LO DRIVE: +10 dBm (NOMINAL)
WIDE BANDWIDTH Description MY93 is a triple balanced mixer, designed for use in milit

✔ MY93 Application

The design utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent perf
