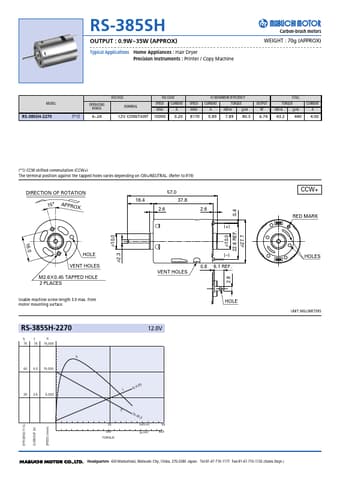

RS-385SH Carbon-brush motors

RS-385SH OUTPUT : 0.9W~35W (APPROX) Typical Applications Home Appliances : Hair Dryer Precision Instruments : Printer / Copy Machine Carbon-brush motors WEIGHT : 70g (APPROX) MODEL RS-385SH-2270 ( 1) OPERATING RANGE 6~24 VOLTAGE NOMINAL 12V CONSTANT NO LOAD SPEED CURRENT r/min A 10000 0.20 SPEED r/min 8170 AT MAXIMUM EFFICIENCY CURRENT TORQUE A mN m g cm 0.89 7.89 80.5 OUTPUT W 6.74 STALL TORQUE mN m g cm 43.2 440 CURRENT A 4.00 ( 1) CCW shifted comm.
