MA4P7455-1225

Quad PIN Diode

MA4P7455-1225 Features

* 4 PIN Diodes in a SOT-25 Plastic Package

* Externally Selectable Bias and RF Matching Network

* 5 - 4,000 MHz Useable Frequency Band

* 43 dBm IP3 @ 1000 MHz (50 )

* 1 dB Loss @ 1000 MHz (50 )

* 30 dB Attenuation @ 1000 MHz (50 )

* Lead-Fre

MA4P7455-1225 General Description

The MA4P7455-1225 is a wideband, lower insertion loss, high IP3, Quad PIN diode π Attenuator in a lead free surface mount SOT-25 package. Four PIN diodes in one package reduce design parasitics and improve circuit density. These PIN diode attenuators perform well where RF signal amplitude control is.

MA4P7455-1225 Datasheet (624.61 KB)

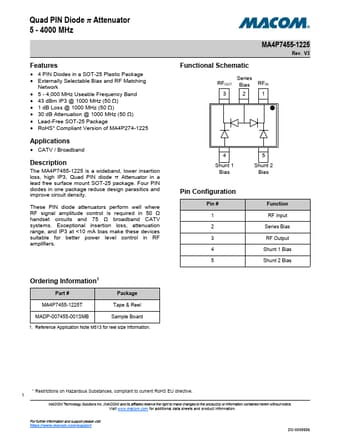

Preview of MA4P7455-1225 PDF

Datasheet Details

Part number:

MA4P7455-1225

Manufacturer:

MACOM

File Size:

624.61 KB

Description:

Quad pin diode.
