MABACT0065 - 4:1 Transmission Line Transformer

MACOM

📥 Download Datasheet

MABACT0065 Datasheet Preview — Preview of MABACT0065 PDF

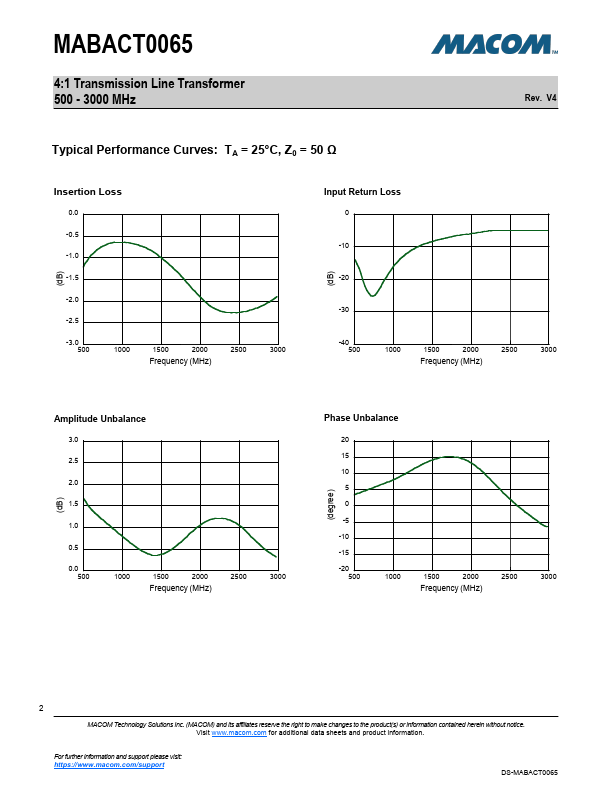

datasheet Preview Page 2

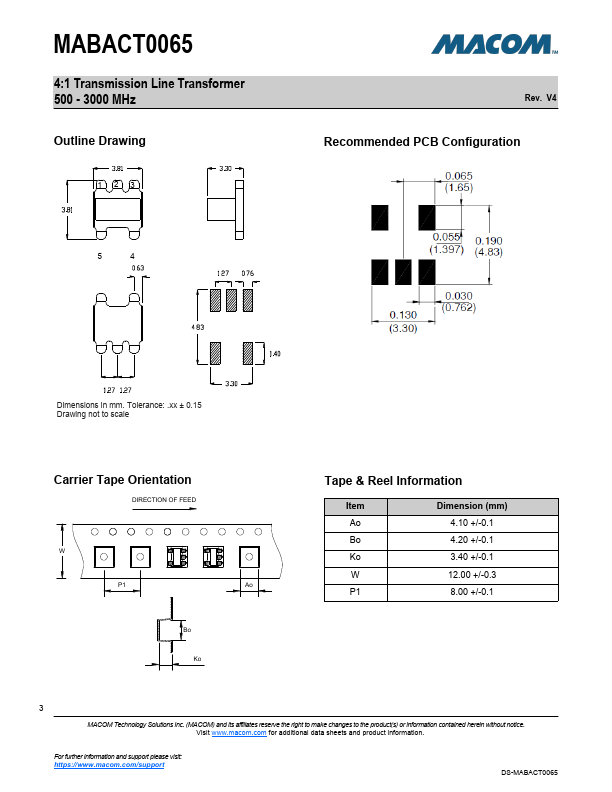

datasheet Preview Page 3

Datasheet Details

Part number	MABACT0065
Manufacturer	MACOM
File Size	563.77 KB
Description	4:1 Transmission Line Transformer
Datasheet	MABACT0065-MACOM.pdf

MABACT0065 Product details

Description

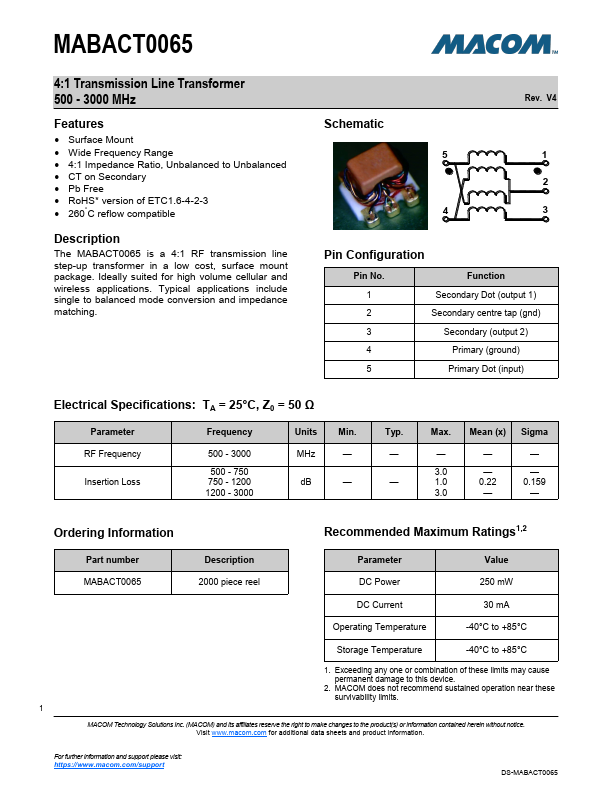

The MABACT0065 is a 4:1 RF transmission line step-up transformer in a low cost, surface mount package.

Features

Surface Mount.
Wide Frequency Range.
4:1 Impedance Ratio, Unbalanced to Unbalanced.
CT on Secondary.
Pb Free.
RoHS.
version of ETC1.6-4-2-3.
260°C reflow compatible.
