MABA-009180-500MHz RF 1:1 Transformer

📥 Download Datasheet  Datasheet Preview Page 1

Description

MABA-009180-500MHz E-Series RF 1:1 Transformer 0.4 - 500 MHz Rev.V4 .
MABA-009180-500MHz is a RoHS compliant 1:1 RF flux coupled transformer in a low cost, surface mount package.

📥 Download Datasheet

Preview of MABA-009180-500MHz PDF

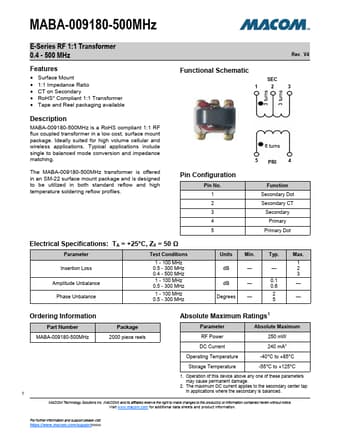

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MABA-009180-500MHz
Manufacturer
MACOM
File Size
639.42 KB
Datasheet
MABA-009180-500MHz-MACOM.pdf
Description
RF 1:1 Transformer

Features

* Surface Mount
* 1:1 Impedance Ratio
* CT on Secondary
* RoHS
* Compliant 1:1 Transformer

Applications

* Typical applications include single to balanced mode conversion and impedance matching. The MABA-009180-500MHz transformer is offered in an SM-22 surface mount package and is designed to be utilized in both standard reflow and high temperature soldering reflow profiles. Pin Configuration Pin No. 1
