MADS-002200-12790T

Surface Mount Zero Bias Schottky Diodes

MADS-002200-12790T Features

* Available in Single and Series Pair Configurations

* Small Profile Surface Mount Packages

* Tape and Reel Deliverable

* RoHS

* Compliant Applications

* Designed for High Volume, Low Cost Detector Applications Description The MA4E2200 series are silicon ze

MADS-002200-12790T General Description

The MA4E2200 series are silicon zero bias P-type detector diodes assembled in low cost surface mount plastic packages. They are designed for usage in a wide variety of detector applications. The MA4E2200 series of zero bias detector diodes are available in series pair configurations in the SOT-23 (c.

MADS-002200-12790T Datasheet (384.83 KB)

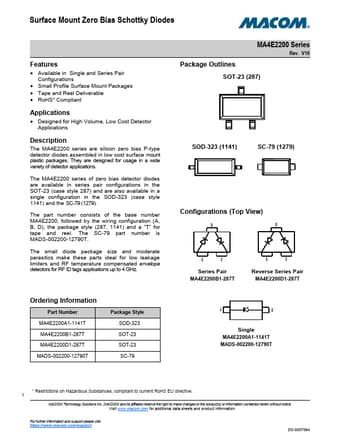

Preview of MADS-002200-12790T PDF

Datasheet Details

Part number:

MADS-002200-12790T

Manufacturer:

MACOM

File Size:

384.83 KB

Description:

Surface mount zero bias schottky diodes.
