MADS-001317-1320AG Datasheet, Diode, Tyco Electronics

MADS-001317-1320AG Features

  • Diode
  • Low Series Resistance, 4 Ω
  • Low Capacitance, 45 fF
  • High Cutoff Frequency
  • Silicon Nitride Passivation
  • Polyimide Scratch Protection
  • <

PDF File Details

Part number:

MADS-001317-1320AG

Manufacturer:

Tyco Electronics

File Size:

141.49kb

Download:

📄 Datasheet

Description:

Gaas solder bump flip chip schottky diode. M/A-COM’s MADS-001317-1320AG is a Gallium Arsenide Flip-Chip Schottky diode with solder bumps. These devices are fabricated on OMCVD

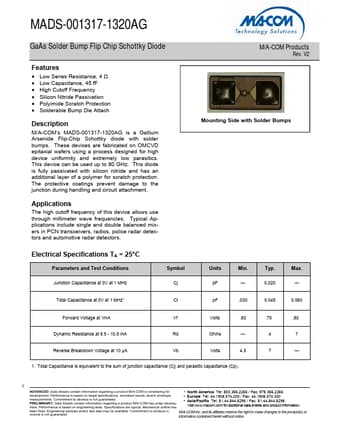

Datasheet Preview: MADS-001317-1320AG 📥 Download PDF (141.49kb)
Page 2 of MADS-001317-1320AG Page 3 of MADS-001317-1320AG

MADS-001317-1320AG Application

  • Applications The high cutoff frequency of this device allows use through millimeter wave frequencies. Typical Applications include single and double
