MADCSM0012

PCS LNA / Downconverter

Tyco Electronics

MADCSM0012 Features

* Highly Integrated LNA and Downconverter 3mm 16-Lead PQFN Operates over 2.7 V to 5 V Supply Voltage Low Noise Figure: 2.3 dB Typical High Input Intercept Point: -9 dBm Typical Continuous Current Control Downconverter Low LO Drive L

MADCSM0012 General Description

M/A-COM’s MADCSM0012 integrated downconverter combines a low noise amplifier, a RF amplifier, a downconverting mixer, an IF amplifier, and LO buffer amplifier. The MADCSM0012 is packaged in a low cost 3mm 16-Lead PQFN with an exposed pad for improved high frequency grounding. M/A-COM designed the MA.

MADCSM0012 Datasheet (228.42 KB)

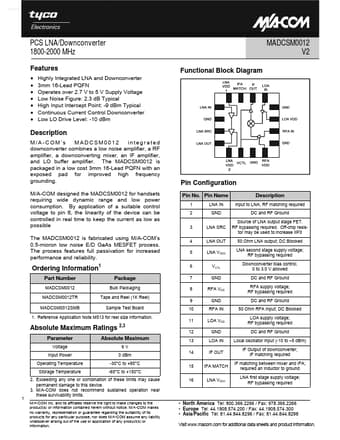

MADCSM0012 Datasheet Preview — Preview of MADCSM0012 PDF

Datasheet Details

Part number:

MADCSM0012

Manufacturer:

Tyco Electronics

File Size:

228.42 KB

Description:

Pcs lna / downconverter.
