MAD1104 - Switching Diode Array

MAD1104 Description

8700 E.Thomas Road Scottsdale, AZ 85251 Tel: (480) 941-6300 Fax (480) 947-1503 MAD1104 Switching Diode Array .

MAD1104 Features

* Dual 8 Diode Array Standard 14 pin Dual-In-Line Package UL 94V-0 Flammability Classification CIRCUIT DIAGRAM MECHANICAL
* Molded 14 Pin Dip Weight: 0.997 grams (approximate) Marking: Logo, device number, date code Pin #1 defined by

📥 Download Datasheet

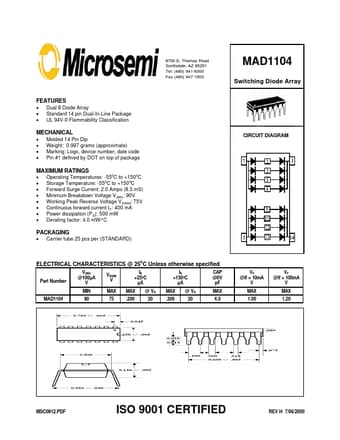

Preview of MAD1104 PDF
