MKVC-1A03R6 - 1000V Si High Voltage Capacitors

MACOM

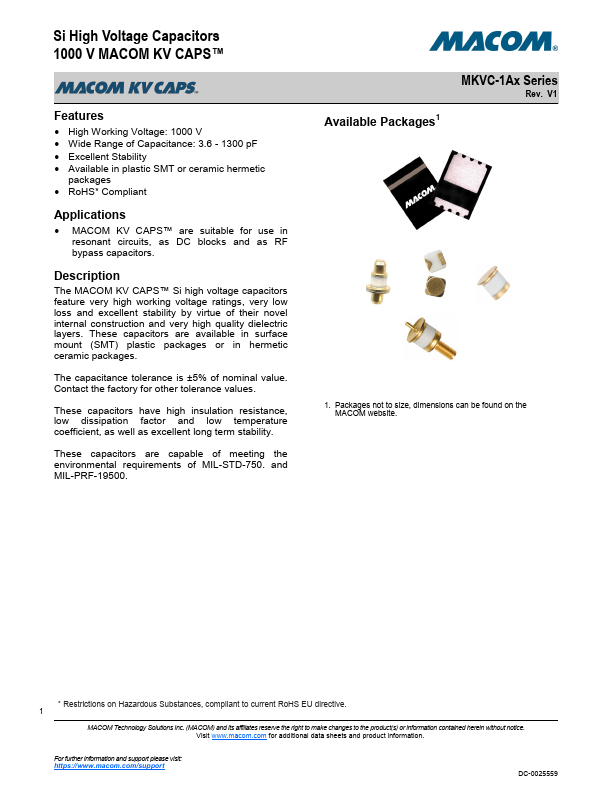

The MKVC-1A03R6 by MACOM is a 1000V Si High Voltage Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	MKVC-1A03R6
Manufacturer	MACOM
File Size	1.21 MB
Description	1000V Si High Voltage Capacitors
Datasheet	MKVC-1A03R6-MACOM.pdf

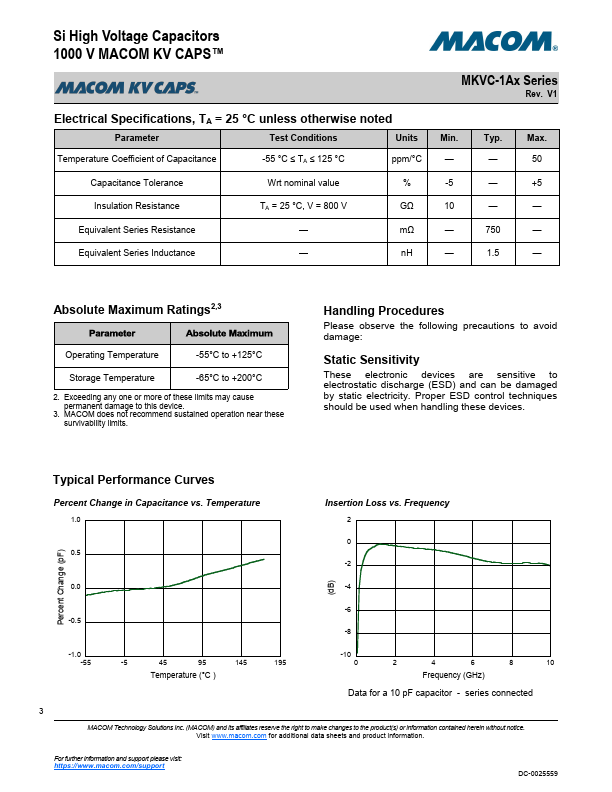

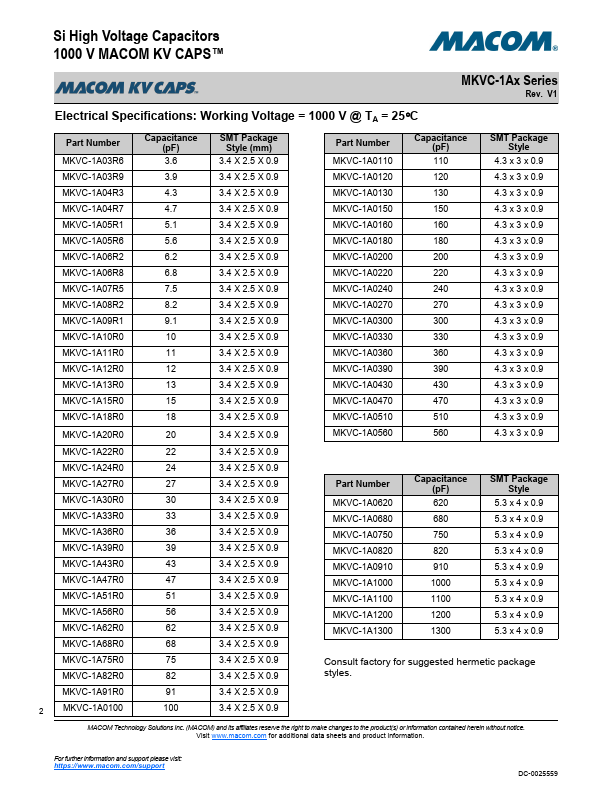

Additional preview pages of the MKVC-1A03R6 datasheet.

MKVC-1A03R6 Product details

Description

The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers.

Features

High Working Voltage: 1000 V.
Wide Range of Capacitance: 3.6 - 1300 pF.
Excellent Stability.
Available in plastic SMT or ceramic hermetic packages.
RoHS.
Compliant.
