MY50A Triple-Balanced Mixer

MACOM

Description

MY50A / MY50AC Triple-Balanced Mixer .
MY50A is a triple balanced mixer, designed for use in military, commercial and test equipment applications.

📥 Download Datasheet

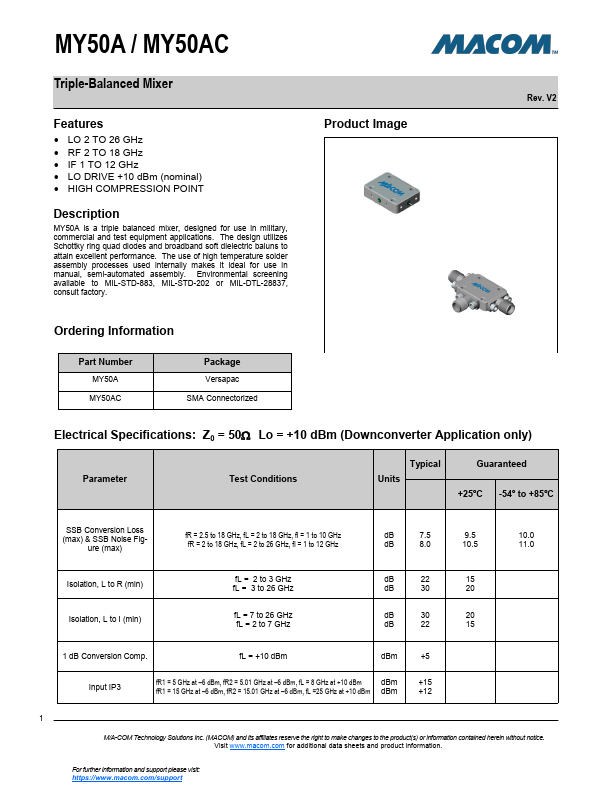

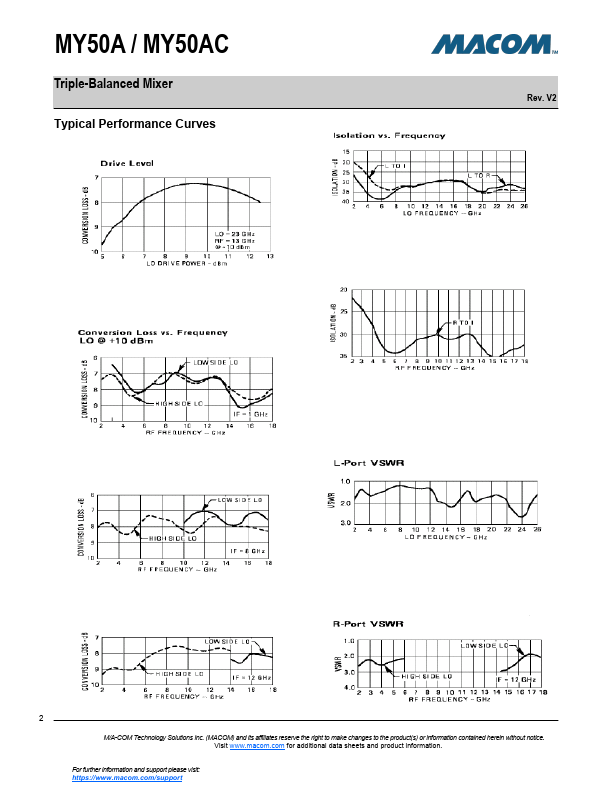

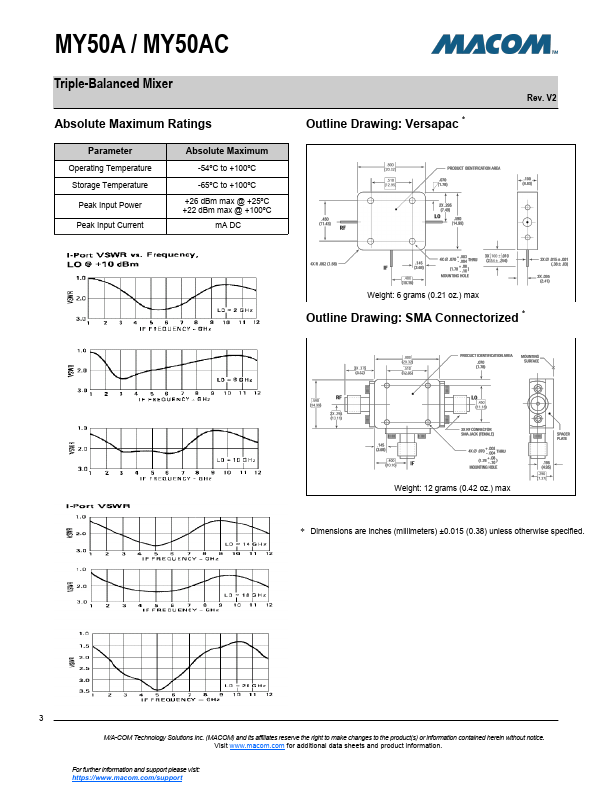

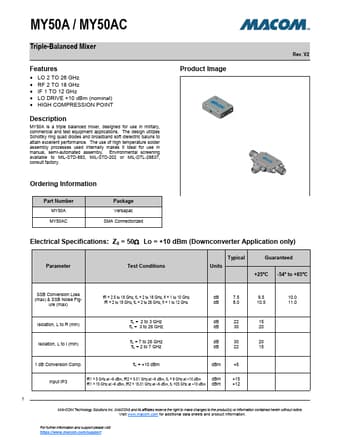

MY50A Datasheet Preview — Preview of MY50A PDF

Datasheet Specifications

Part number: MY50A
Manufacturer: MACOM
File Size: 657.49 KB
Datasheet: MY50A-MACOM.pdf
Description: Triple-Balanced Mixer

Features

* LO 2 TO 26 GHz
* RF 2 TO 18 GHz
* IF 1 TO 12 GHz
* LO DRIVE +10 dBm (nominal)

Applications

* The design utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent performance. The use of high temperature solder assembly processes used internally makes it ideal for use in manual, semi-automated assembly. Environmental screening available to MIL-STD-883, MIL-
