MY50AC, MY50A, Triple-Balanced Mixer

MY50A / MY50AC Triple-Balanced Mixer .
MY50A is a triple balanced mixer, designed for use in military, commercial and test equipment applications.

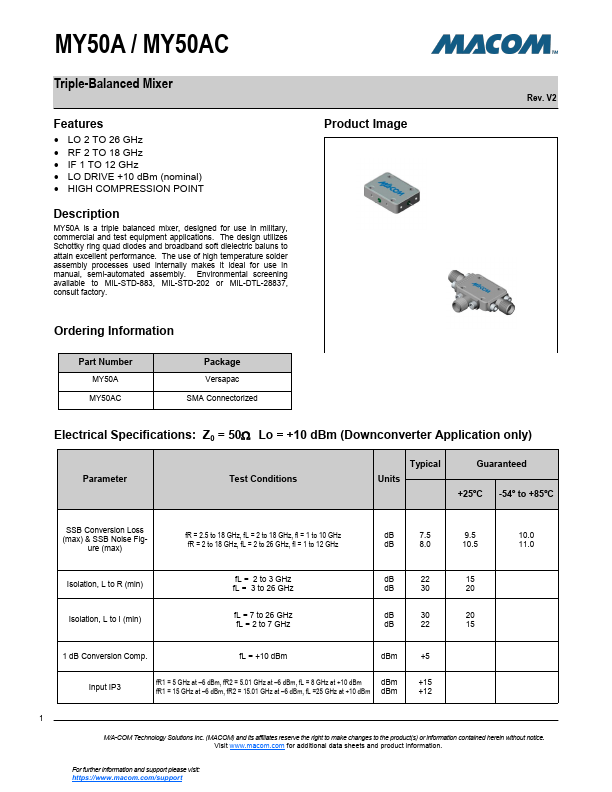

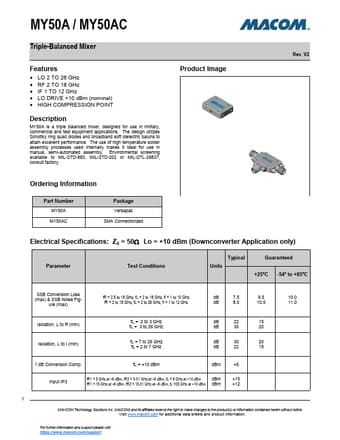

datasheet Preview Page 1 from Datasheet4u.com

MY50A-MACOM.pdf

MY50AC Datasheet Preview — This datasheet PDF includes multiple part numbers: MY50AC, MY50A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MY50AC, MY50A

Manufacturer:

MACOM

File Size:

657.49 KB

Description:

Triple-Balanced Mixer

Note:

This datasheet PDF includes multiple part numbers: MY50AC, MY50A.
Please refer to the document for exact specifications by model.

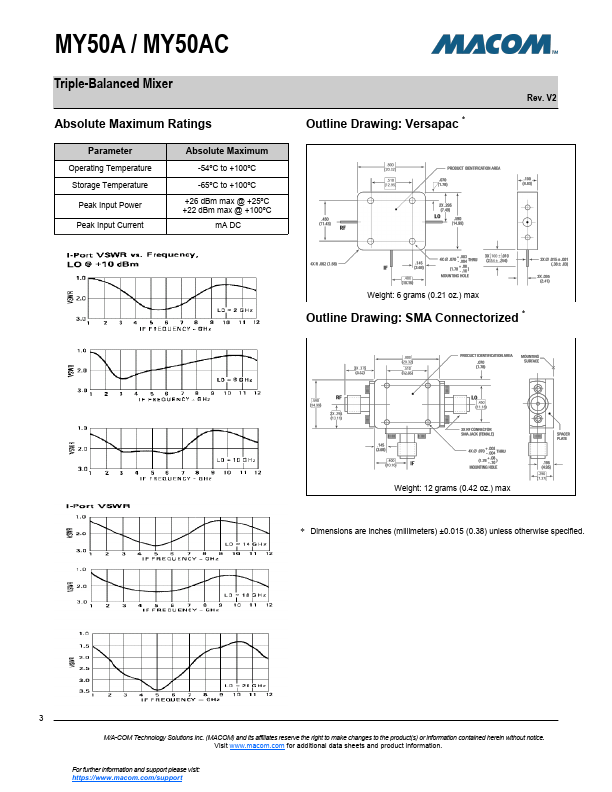

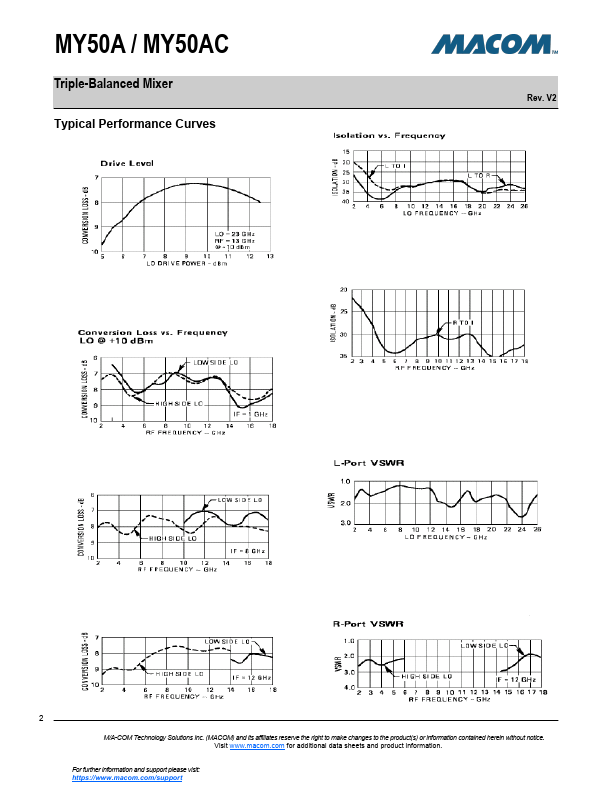

Features

* LO 2 TO 26 GHz
* RF 2 TO 18 GHz
* IF 1 TO 12 GHz
* LO DRIVE +10 dBm (nominal)

Applications

* The design utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent performance. The use of high temperature solder assembly processes used internally makes it ideal for use in manual, semi-automated assembly. Environmental screening available to MIL-STD-883, MIL-
