MY50C, MY50 - Triple Balanced Mixer

MACOM

📥 Download Datasheet

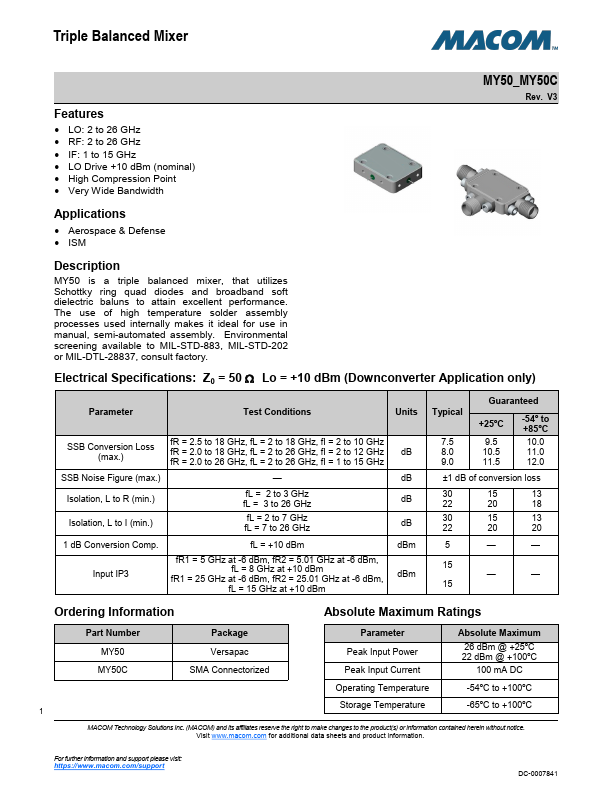

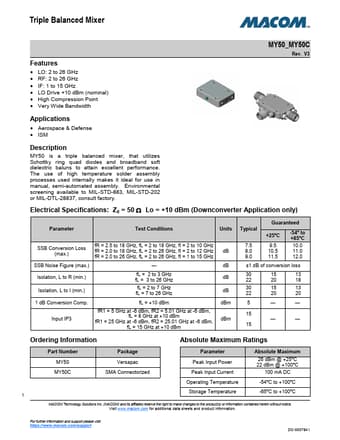

MY50C Datasheet Preview — This datasheet PDF includes multiple part numbers: MY50C, MY50. Please refer to the document for exact specifications by model.

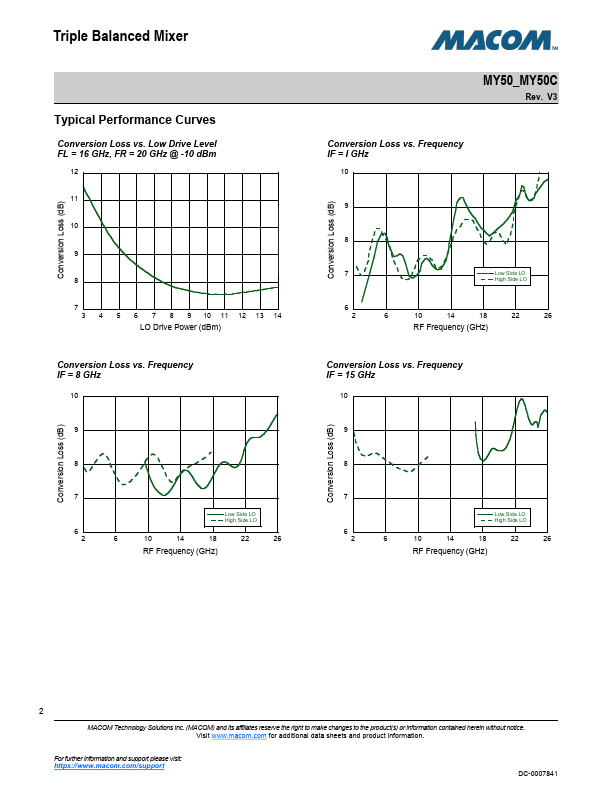

datasheet Preview Page 2

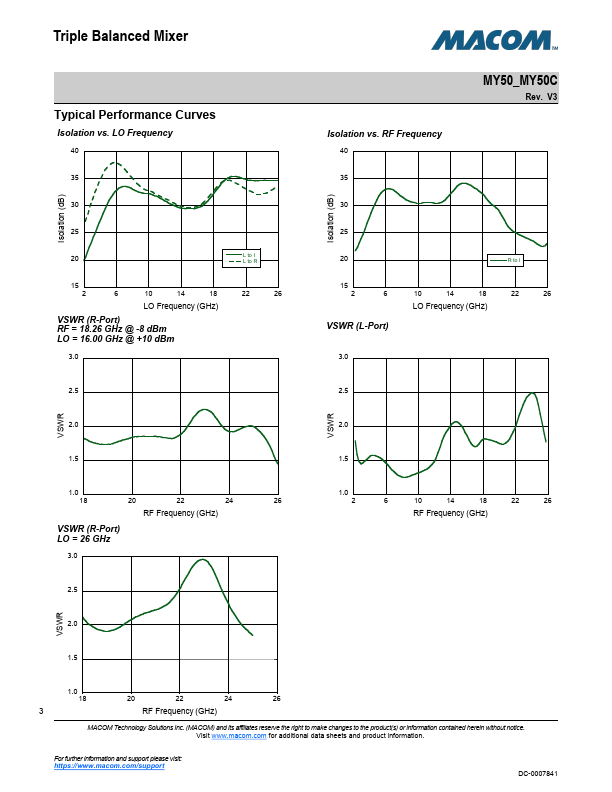

datasheet Preview Page 3

Datasheet Details

Part number	MY50C, MY50
Manufacturer	MACOM
File Size	464.90 KB
Description	Triple Balanced Mixer
Datasheet	MY50-MACOM.pdf
Note	This datasheet PDF includes multiple part numbers: MY50C, MY50. Please refer to the document for exact specifications by model.

MY50C Product details

Description

MY50 is a triple balanced mixer, that utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent performance.

Features

LO: 2 to 26 GHz.
RF: 2 to 26 GHz.
IF: 1 to 15 GHz.
LO Drive +10 dBm (nominal).
High Compression Point.
Very Wide Bandwidth MY50_MY50C Rev. V3.
