MY84C, MY84 Double-Balanced Mixer

MACOM

Description

MY84 / MY84C Double-Balanced Mixer .
The MY84 is a double balanced mixer, designed for use in military, commercial and test equipment applications.

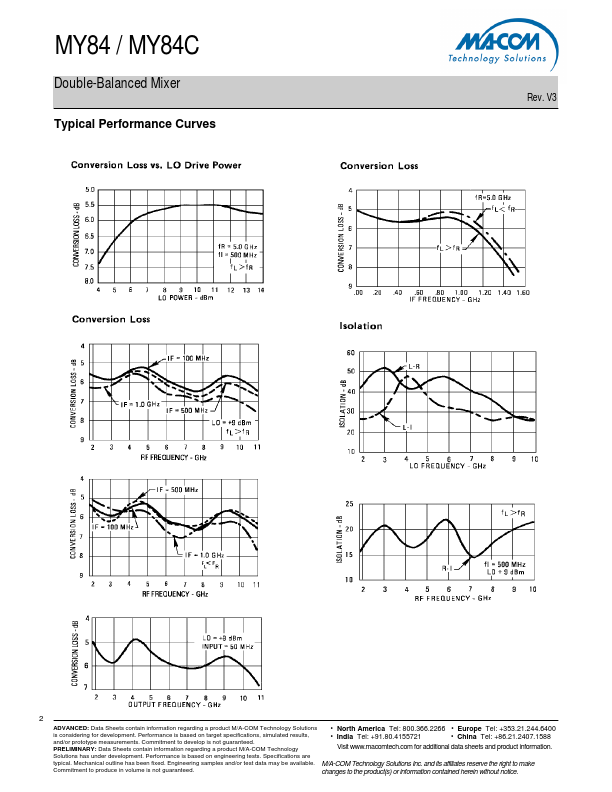

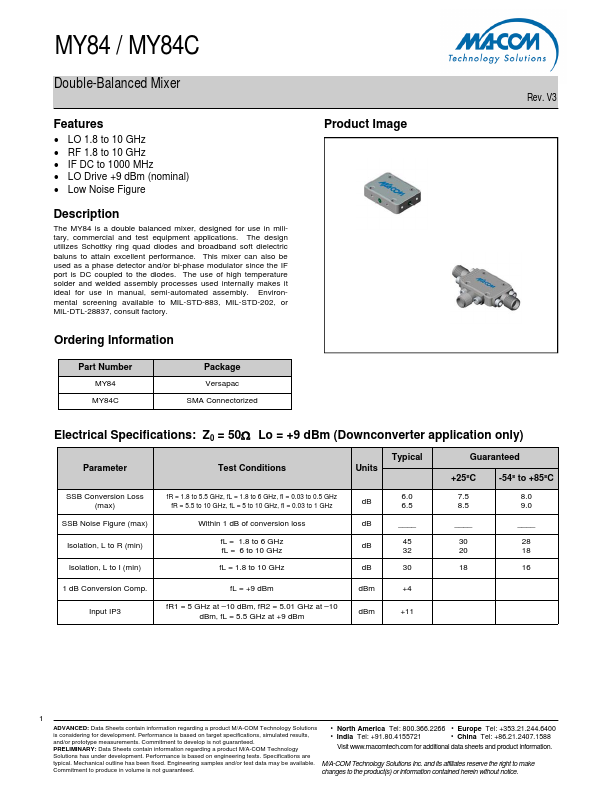

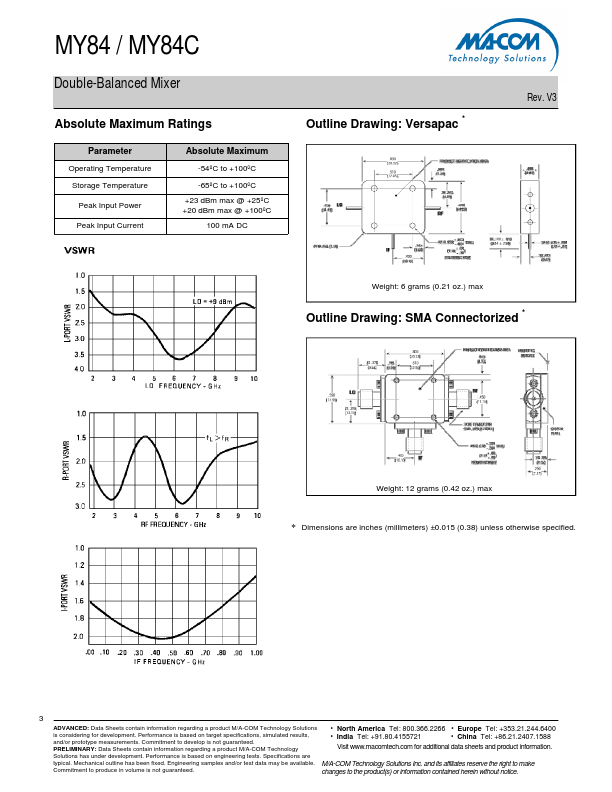

📥 Download Datasheet

MY84C Datasheet Preview — This datasheet PDF includes multiple part numbers: MY84C, MY84. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MY84C, MY84
Manufacturer: MACOM
File Size: 109.05 KB
Datasheet: MY84-MACOM.pdf
Description: Double-Balanced Mixer
Note: This datasheet PDF includes multiple part numbers: MY84C, MY84.
Please refer to the document for exact specifications by model.

Features

* LO 1.8 to 10 GHz
* RF 1.8 to 10 GHz
* IF DC to 1000 MHz
* LO Drive +9 dBm (nominal)

Applications

* The design utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent performance. This mixer can also be used as a phase detector and/or bi-phase modulator since the IF port is DC coupled to the diodes. The use of high temperature solder and welded assembly process
