MY84 - DOUBLE-BALANCED MIXER

Tyco Electronics

Datasheet Details

Part number	MY84
Manufacturer	Tyco Electronics
File Size	144.57 KB
Description	DOUBLE-BALANCED MIXER
Datasheet	MY84 Datasheet
Additional preview pages of the MY84 datasheet.

📁 Similar Datasheet

MY84 - Double-Balanced Mixer (MACOM)
MY84C - Double-Balanced Mixer (MACOM)
MY84SPK02M2 - Bluetooth 3.0+EDR Stereo Audio module (Myland)
MY84SPK02M2-V1.0 - Bluetooth 3.0+EDR Stereo audio module (ETC)
MY8008 - Stereo Filter Free Class D Audio Power Amplifier (Myland)
MY8103 - 65V 1A Common Anode Capable LED Driver (MY-Semi)
MY81SPK02M2 - Bluetooth 3.0+EDR Stereo Audio module (Myland)
MY85 - Double-Balanced Mixer (MA-COM)
MY85C - Double-Balanced Mixer (MA-COM)

Other Datasheets by Tyco Electronics

MY84C - DOUBLE-BALANCED MIXER
MY82 - Triple-Balanced Mixer
MY82C - Triple-Balanced Mixer
MY83H - Triple-Balanced Mixer
MY83HC - Triple-Balanced Mixer
MY85 - DOUBLE-BALANCED MIXER
MY85C - DOUBLE-BALANCED MIXER
MY87 - Triple-Balanced Mixer

Full PDF Text Transcription

Click to expand full text

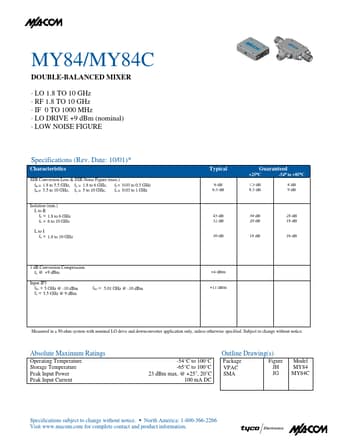

MY84/MY84C DOUBLE-BALANCED MIXER · LO 1.8 TO 10 GHz · RF 1.8 TO 10 GHz · IF 0 TO 1000 MHz · LO DRIVE +9 dBm (nominal) · LOW NOISE FIGURE Specifications (Rev. Date: 10/01)* Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 1.8 to 5.5 GHz, fL = 1.8 to 6 GHz, fI = 0.03 to 0.5 GHz fR = 5.5 to 10 GHz, fL = 5 to 10 GHz, fI = 0.03 to 1 GHz fR = fL = fI = fR = fL = fI = Isolation (min.) L to R fL = 1.8 to 6 GHz fL = 6 to 10 GHz fL = L to I fL = 1.8 to 10 GHz fL = fL = R to I fR = fR = 1 dB Conversion Compression fL @ +9 dBm fL @ Input IP3 fR1 = 5 GHz @ -10 dBm fR2 = 5.01 GHz @ -10 dBm fL = 5.5 GHz @ 9 dBm fR1 = fL = fR1 = fL = fR2 = fR2 = Typical 6 dB 6.5 dB +25°C 7.5 dB 8.
