TFHS309 torque flange sensors

With its compact, bearingless, maintenance-free design, the TF Torque Flange Se.

TFHS309 Features

* ▪▪ Complete torque measuring system including: measuring flange with signal amplifier, HF transmitter, conditioner and 4m coaxial cable ▪▪ Contactless signal transmission: via telemetry ▪▪ Torque range: 20 N

* m to 150,000 N

* m (higher on demand) ▪▪ High accuracy: 0.1% to 0.2% (0.05% option)

TFHS309-MAGTROL.pdf

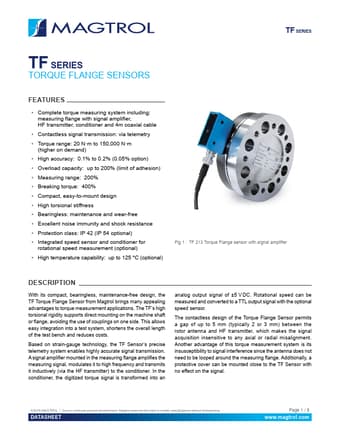

TFHS309 Datasheet Preview — Preview of TFHS309 PDF

Datasheet Details

Part number:

TFHS309

Manufacturer:

MAGTROL

File Size:

1.08 MB

Description:

Torque flange sensors.
