MAS9316 16-BIT DAC

MAS9316 Description

www.DataSheet4U.com DA9316.003 March 23, 2005 MAS9316 16-BIT DAC * +/- 0.006% DNL and INL * No Laser Trimming * Fast Interface Timing DE.
The MAS9316 is a 16-bit, monolithic CMOS, multiplying digital-to-analog converter (DAC ) designed for direct microprocessor interface.

MAS9316 Features

* Linearity TC 0.5 ppm/C
* 2 kV ESD Protection on Digital Inputs
* D4 MSB's Decoded
* All 65536 Codes Tested
* Monolithic CMOS Replacement for SIPEX
* DAC 9331-16-4 and SP9316C-4

MAS9316 Applications

* Instrumentation
* uP Controlled systems BLOCK DIAGRAM VDD VREF . . . BIT16/ LSB BIT1/ MSB 8-BIT INPUT REG. RFB 16-BIT DAC 8-BIT INPUT REG. IO1 LBE HBE DGND IO2 1 DA9316.003 March 23, 2005 PIN CONFIGURATION PDIP 24 MAS9316N BIT12 1 BIT11 2 BIT10 3 BIT9 4 BIT8 5 BIT7 6 BIT6 7

📥 Download Datasheet

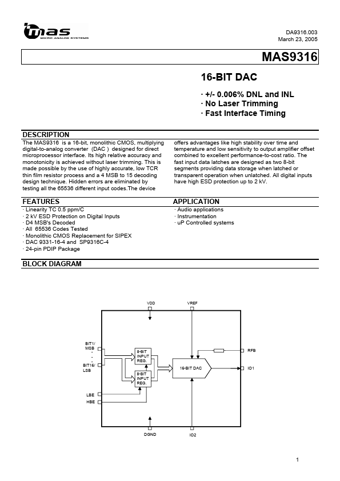

Preview of MAS9316 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAS9316
Manufacturer
MAS
File Size
166.95 KB
Datasheet
MAS9316_MAS.pdf
Description
16-BIT DAC
