MT2301 Datasheet - MATRIX MICROTECH

MT2301, P-Channel Enhancement Mode MOSFET

.
MT2301 P- Channel Enhancement Mode MOSFET The MT2301 is the P-Channel logic enhancement mode power field effect transistor are produced using high c.

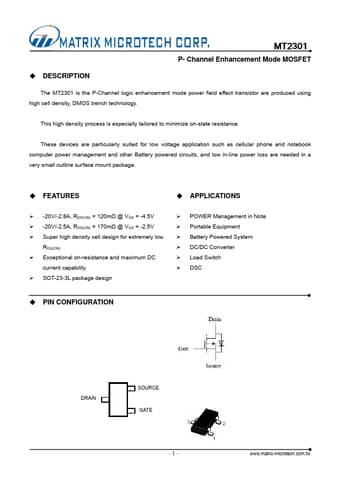

datasheet Preview Page 1 from Datasheet4u.com

MT2301-MATRIXMICROTECH.pdf

MT2301 Datasheet Preview — Preview of MT2301 PDF

Datasheet Details

Part number:

MT2301

Manufacturer:

MATRIX MICROTECH

File Size:

333.23 KB

Description:

P-Channel Enhancement Mode MOSFET

Applications

* ¾ -20V/-2.8A, RDS(ON) = 120mΩ @ VGS = -4.5V ¾ -20V/-2.5A, RDS(ON) = 170mΩ @ VGS = -2.5V ¾ Super high density cell design for extremely low RDS(ON) ¾ Exceptional on-resistance and maximum DC current capability ¾ SOT-23-3L package design ¾ POWER Management in Note ¾ Portable Equipment ¾ Battery Powe
