MT2302 Datasheet - MT Semiconductor

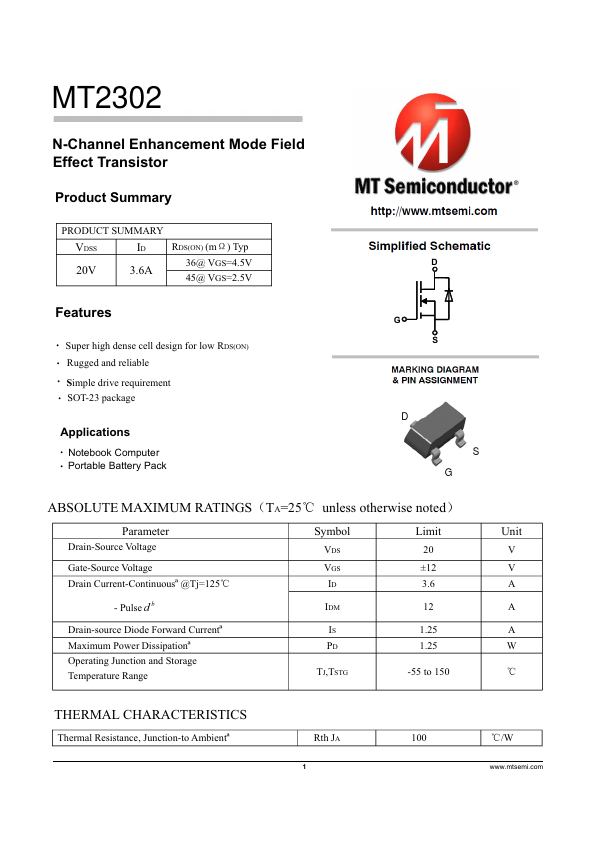

MT2302, N-Channel MOSFET

MT2302 N-Channel Enhancement Effect Transistor Mo de Field Product Summary PRODUCT SUMMARY VDSS ID RDS(ON).

datasheet Preview Page 1 from Datasheet4u.com

MT2302-MTSemiconductor.pdf

MT2302 Datasheet Preview — Preview of MT2302 PDF

Datasheet Details

Part number:

MT2302

Manufacturer:

MT Semiconductor

File Size:

594.49 KB

Description:

N-Channel MOSFET

Features

* Super high dense cell design for low RDS(ON) Rugged and reliable Simple drive requirement SOT-23 package $SSOLFDWLRQV Notebook Computer Portable Battery Pack G S D S G ABSOLUTE MAXIMUM RATINGS˄TA=25ć unless otherwise noted˅ Parameter Drain-Source Voltage Gate-Source Voltage Drain Cur

Applications

* such as the development of weapons of mass destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws and regulations, and procedures required by such laws and regulations. 4. All informat
