MX3501T23 Datasheet - MAXINMICRO

High Speed Comparator

MX3501T23 Features

* High Speed: 4.5ns

* Rail to Rail I/O

* Supply Voltage: 2.7V to 5.5V

* Push Pull CMOS Output Stage

* Shutdown

* Low Supply Current: 3.2mA

* 6-Pin SOT23 Package APPLICATIONS Test equipment GENERAL INFORMATION Ordering information Part Number

MX3501T23 General Description

MX3501T23 SOT23-6L MPQ 3K Package dissipation rating Package SOT23-6L RθJA（℃/W） 200 Absolute maximum ratings Parameter Supply voltage IN+、IN- signal pin voltage IN+、IN- signal pin current Value -0.7to 6V (V-)-0.3 to (V+)+0.3 10mA max OUT pin short circuit Junction temperature Storage tempera.

MX3501T23 Datasheet (923.92 KB)

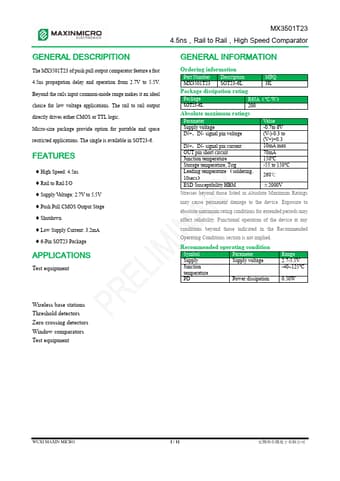

MX3501T23 Datasheet Preview — Preview of MX3501T23 PDF

Datasheet Details

Part number:

MX3501T23

Manufacturer:

MAXINMICRO

File Size:

923.92 KB

Description:

High speed comparator.
