MX3502S - 2-Channel High Speed Comparator

The MX3502S by MAXINMICRO is a 2-Channel High Speed Comparator. Below is the official datasheet preview.

📥 Download Datasheet

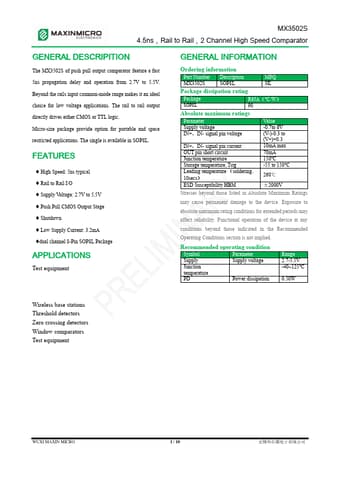

Official preview page of the MX3502S 2-Channel High Speed Comparator datasheet (MAXINMICRO).

Datasheet Details

Part number MX3502S
Manufacturer MAXINMICRO
File Size 931.39 KB
Description 2-Channel High Speed Comparator
Datasheet download datasheet MX3502S-MAXINMICRO.pdf
Additional preview pages of the MX3502S datasheet.

MX3502S Product details

Description

MX3502S SOP8L MPQ 3K Package dissipation rating Package SOP8L RθJA（℃/W） 90 Absolute maximum ratings Parameter Supply voltage IN+、IN- signal pin voltage IN+、IN- signal pin current Value -0.7to 6V (V-)-0.3 to (V+)+0.3 10mA max OUT pin short circuit Junction temperature Storage temperature, Tstg Leading temperature （soldering， 10secs） ESD Susceptibility HBM 70mA 150℃ -55 to 150℃ 260℃ ±2000V Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the devic

Features
