MX5052S

3A High-Side OR-ing FET Circuit

MX5052S Features

* Wide operating input voltage range VIN: 5V to 40V

* 60V transient voltage

* Charge pump gate driver for internal N-channel MOSFET

* 50ns fast response to current reversal

* 2A peak gate off current internal

* Ultra-small VDS turn-off voltage reduces tur

MX5052S General Description

The MX5052S high-side OR-ing works with an internal MOSFET and acts as an ideal diode rectifier when connected in series with the power supply. This OR-ing circuit enables MOSFETs to replace diode rectifiers in power distribution networks, reducing power loss and voltage drop. The MX5052S controller.

MX5052S Datasheet (531.09 KB)

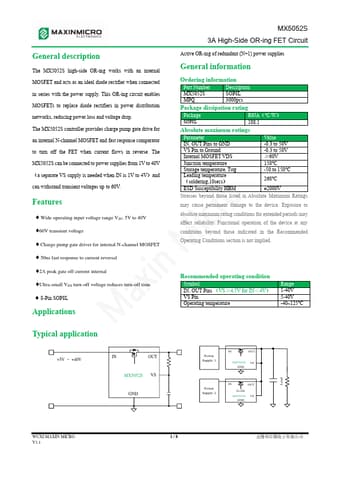

Preview of MX5052S PDF

Datasheet Details

Part number:

MX5052S

Manufacturer:

MAXINMICRO

File Size:

531.09 KB

Description:

3a high-side or-ing fet circuit.
