MX5012D +12 Voltage Electronic Fuse

MX5012D WDFN10 4 *4，Halogen-free，T&R Package dissipation rating Package RθJC（℃/W） WDFN4 *4 50 Absolute maximum ratings Parameter Value VCC DC supply voltage -0.3 to 18V EN/Fault pin voltage -0.3 to 18V dv/dt and Ilimit pin voltage -0.3 to 6V Source pin voltage -0.3 to 18V Ju.

MX5012D +12 Voltage Electronic Fuse with 2 FET GENERAL DESCRIPITION MX5012D is a cost effective, resettable fuse which can greatly enhance the reliability of a board drive or other circuit from both catastrophic and shutdown failures. The device is designed to protect systems such as USB hubs against sudden output short to battery events. The device monitors VIN and VOUT to provide true reverse blocking from output when output short to battery fault condition or input power fail condition is d.

MX5012D Features

* 44mR Typical RDSON with 2 FET

* Tristate Enable

* Over current Protection

* Thermally Protection

* Integrated Soft Start Circuit

* Fast Response Overvoltage Clamp Circuit

* Internal Undervoltage Lockout Circuit

* Internal Charge Pump

MX5012D-MAXINMICRO.pdf

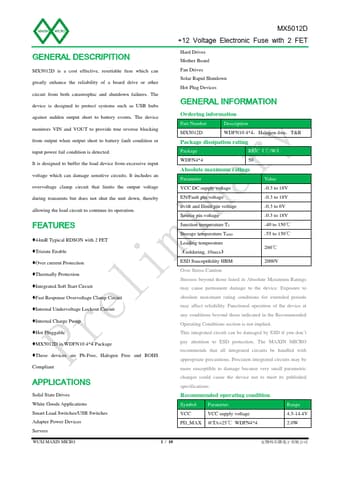

MX5012D Datasheet Preview — Preview of MX5012D PDF

Datasheet Details

Part number:

MX5012D

Manufacturer:

MAXINMICRO

File Size:

681.46 KB

Description:

+12 voltage electronic fuse.
