1N5370BE, 1N5348BE - 5 Watt Zener Diode

MCC

📥 Download Datasheet

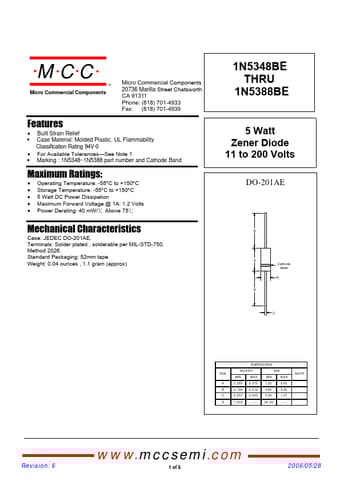

1N5370BE Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5370BE, 1N5348BE. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 1N5370BE, 1N5348BE
Manufacturer: MCC
File Size: 653.83 KB
Datasheet: 1N5348BE_MCC.pdf
Description: 5 Watt Zener Diode
Note: This datasheet PDF includes multiple part numbers: 1N5370BE, 1N5348BE.
Please refer to the document for exact specifications by model.

1N5370BE Product details

Features

Built Strain Relief.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
For Available Tolerances.
See Note 1.
Marking : 1N5348~1N5388 part number and Cathode Band Maximum Ratings:.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C.
5 Watt DC Power Dissipation.
Maximum Forward Voltage @ 1A: 1.2 Volts.
Power Derating: 40 mW/℃ Above 75℃ Mechanical Characteris.
