1N5370BL - SILICON ZENER DIODES

This page provides the datasheet information for the 1N5370BL, a member of the 1N5338BL SILICON ZENER DIODES family.

Datasheet Summary

Features

  • ! Complete Voltage Range 5.1 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A D C DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical Characteri.

📥 Download Datasheet

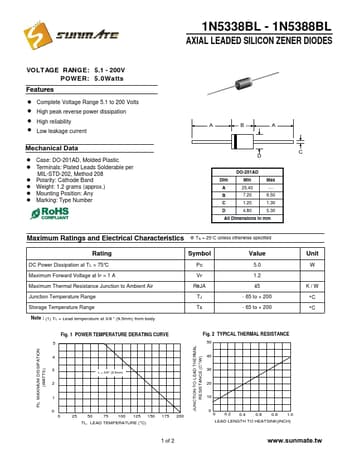

Datasheet preview – 1N5370BL

Datasheet Details

Part number 1N5370BL
Manufacturer SunMate
File Size 139.19 KB
Description SILICON ZENER DIODES
Datasheet download datasheet 1N5370BL Datasheet
Additional preview pages of the 1N5370BL datasheet.

📁 Similar Datasheet

  • 1N5370B - Silicon Zener Diode (Motorola)
  • 1N5370B - Zener Diode (MCC)
  • 1N5370B - ZENER DIODE (GME)
  • 1N5370B - 5.0W ZENER DIODE (WON-TOP)
  • 1N5370B - Zener Diode (NTE)
  • 1N5370B - Silicon 5 Watt Zener Diodes (Microsemi)
  • 1N5370B - 5W ZENER DIODE (Diodes Incorporated)
  • 1N5370B - Zener Voltage Regulator (ON Semiconductor)
  • 1N5370B - Zener Diode (Eris)
  • 1N5370B - ZENER DIODE (RFE)
Other Datasheets by SunMate

Full PDF Text Transcription

Click to expand full text
1N5338BL - 1N5388BL AXIAL LEADED SILICON ZENER DIODES VOLTAGE RANGE: 5.1 - 200V POWER: 5.0Wa t t s Features ! Complete Voltage Range 5.1 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx.) ! Mounting Position: Any ! Marking: Type Number A B A D C DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.
