BAV103, BAV100 - Small Signal Diodes

MCC

The BAV103 by MCC is a Small Signal Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	BAV103, BAV100
Manufacturer	MCC
File Size	626.83 KB
Description	Small Signal Diodes
Datasheet	BAV100-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: BAV103, BAV100. Please refer to the document for exact specifications by model.

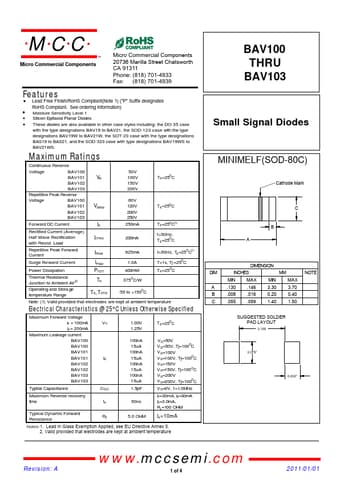

Additional preview pages of the BAV103 datasheet.

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information).
Moisture Sensitivity Level 1.
Silicon Epitaxial Planar Diodes.
These diodes are also available in other case styles including: the DO-35 case with the type designations BAV19 to BAV21, the SOD-123 case with the type designations BAV19W to BAV21W, the SOT-23 case with the type designations BAS19 to BAS21, and the SOD-323 case with type designations BAV19WS.
