D845 - NPN Silicon Power Transistors

Product Overview

MCC

Part number	D845
Manufacturer	MCC
File Size	71.79 KB
Description	NPN Silicon Power Transistors
Datasheet	D845 Datasheet

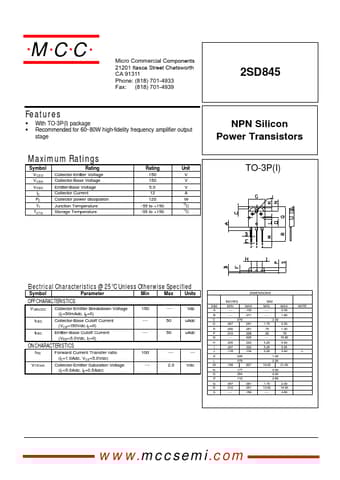

Additional preview pages of the D845 datasheet.

With TO-3P(I) package.
Recommended for 60~80W high-fidelity frequency amplifier output stage Maximum Ratings Symbol VCEO VCBO VEBO IC PC TJ TSTG Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Collector power dissipation Junction Temperature Storage Temperature Rating 150 150 5.0 12 120 -55 to +150 -55 to +150 Unit V V V A W OC OC 2SD845 NPN Silicon Power Transistors TO-3P(I) Electrical Characteristics @ 25OC Unless Otherwi.
