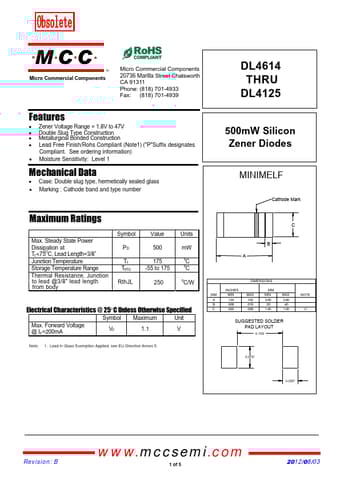

DL4105, DL4614 - 500mW Silicon Zener Diodes

MCC

Datasheet Details

Part number	DL4105, DL4614
Manufacturer	MCC
File Size	396.47 KB
Description	500mW Silicon Zener Diodes
Datasheet	DL4614-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: DL4105, DL4614. Please refer to the document for exact specifications by model.

Zener Voltage Range = 1.8V to 47V.
Double Slug Type Construction.
Metallurgical Bonded Construction.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Moisture Sensitivity: Level 1 Mechanical Data.
Case: Double slug type, hermetically sealed glass.
Marking : Cathode band and type number Maximum Ratings Max. Steady State Power Dissipation at TL.
