DTC114YKA - NPN Digital Transistor

MCC

📥 Download Datasheet

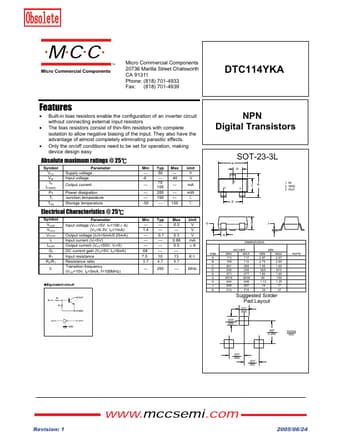

DTC114YKA Datasheet Preview — Preview of DTC114YKA PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTC114YKA
Manufacturer	MCC
File Size	79.90 KB
Description	NPN Digital Transistor
Datasheet	DTC114YKA-MCC.pdf

DTC114YKA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy Absolute maximum ratings @ 25к Symbol VCC VIN IO IC(MAX) Pd Tj Tstg Param.
